ALE75B05
ObsoletePanasonic Electric Works

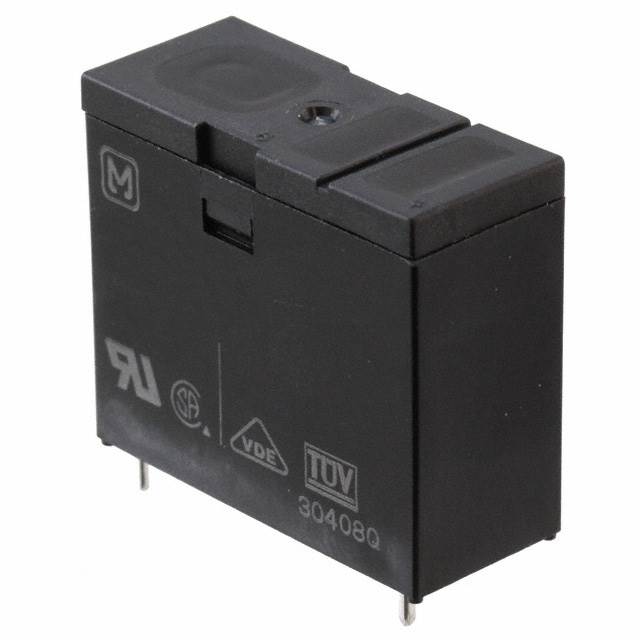

RELAY GEN PURPOSE SPST 16A 5V
Deep-Dive with AI
Search across all available documentation for this part.
ALE75B05
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE SPST 16A 5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALE75B05 |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 40 mA |
| Coil Insulation | Class B |
| Coil Resistance | 125 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 16 A |
| Load - Max Switching | 4432 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.75 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 20 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 25 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ALE75B Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
