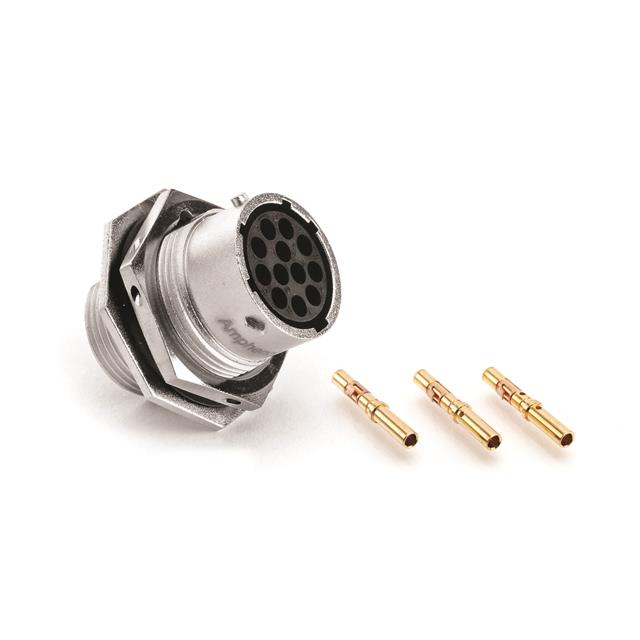

RT07147SNH-K

Active

Amphenol Sine Systems Corp

RECEPTACLE KIT, JAM NUT, 7 POSIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

RT07147SNH-K

Active

Amphenol Sine Systems Corp

RECEPTACLE KIT, JAM NUT, 7 POSIT

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT07147SNH-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Termination	Crimp
Voltage Rating	500 VAC

RT07147 Series

Part	Current Rating (Amps)	Voltage Rating	Mounting Feature	Number of Positions	Contact Finish - Mating	Fastening Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Ingress Protection	Orientation	Insert Material	Shielding	Shell Finish	Termination	Material Flammability Rating	Connector Type	Applications	Shell Material	Includes	Contact Type	Note	Features	Housing Color	Contact Shape	Contact Size	Type
Amphenol Sine Systems Corp RT07147PNH-K	13 A	500 VAC	Bulkhead - Front Side Nut	7	Gold	Bayonet Lock	Silver	-40 °C	105 ░C	14	7	IP67 - Dust Tight Waterproof	N	Thermoplastic	Shielded	Nickel	Crimp	UL94 V-0	Male Pins Receptacle	Aerospace Automation Industrial Telecom Transportation	Zinc Alloy
Amphenol Sine Systems Corp RT07147PNHEC03R			Bulkhead - Front Side Nut	7		Bayonet Lock		-40 °C	125 °C	14	7	IP67 - Dust Tight Waterproof	N	Thermoplastic	Shielded	Nickel		UL94 V-0	Receptacle Housing		Zinc Alloy	1 Connector 1 Nut 1 O-Ring	Crimp	Contacts Not Included	Backshell	Silver	Circular	16	For Male Pins
Amphenol Sine Systems Corp RT07147SNH-K	13 A	500 VAC	Bulkhead - Front Side Nut	7	Gold	Bayonet Lock	Silver	-40 °C	105 ░C	14	7	IP67 - Dust Tight Waterproof	N	Thermoplastic	Shielded	Nickel	Crimp	UL94 V-0	Receptacle Female Sockets	Aerospace Automation Industrial Telecom Transportation	Zinc Alloy
Amphenol Sine Systems Corp RT07147SNH			Bulkhead - Front Side Nut	7		Bayonet Lock		-40 °C	105 ░C	14	7	IP67 - Dust Tight Waterproof	N	Thermoplastic	Shielded	Nickel		UL94 V-0	Receptacle Housing		Zinc Alloy	1 Connector 1 Nut 1 O-Ring	Crimp	Contacts Not Included		Silver	Circular	16	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.29
		10	$ 20.26

Description

General part information

RT07147 Series

7 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
