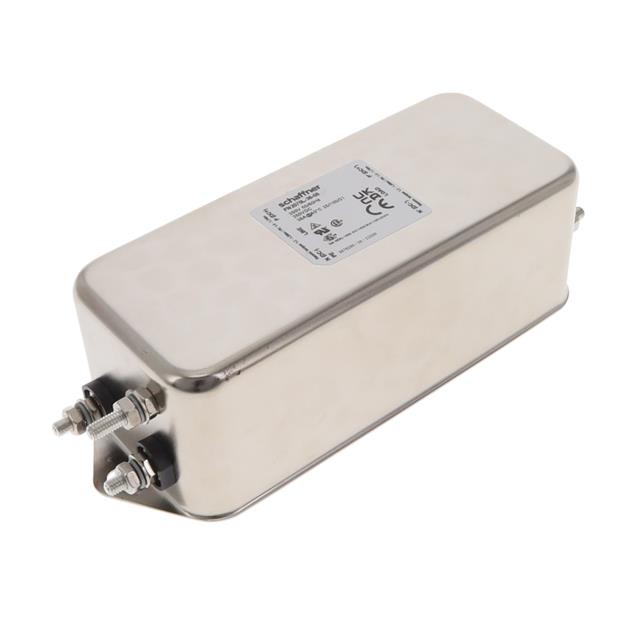

FN2070L-36-08

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 36A CHAS

Search across all available documentation for this part.

Active

Schaffner EMC Inc.

LINE FILTER 110V/250VAC 36A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	FN2070L-36-08

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	36 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	1.23 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Voltage - Rated AC	250 V, 110 V

LINE FILTER 110V/250VAC 36A CHAS

Part	Configuration	Operating Temperature [custom]	Filter Type	Approval Agency	Mounting Type	Applications	Inductance	Voltage - Rated AC	Frequency - Operating	Current
Schaffner EMC Inc. FN2070L-36-08	Two Stage	-25 °C, 100 °C	Single Phase	CSA, ENEC, UR	Chassis Mount	General Purpose	1.23 mH	110 V, 250 V	400 Hz	36 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 36 A 110V, 250V DC ~ 400Hz Two Stage
