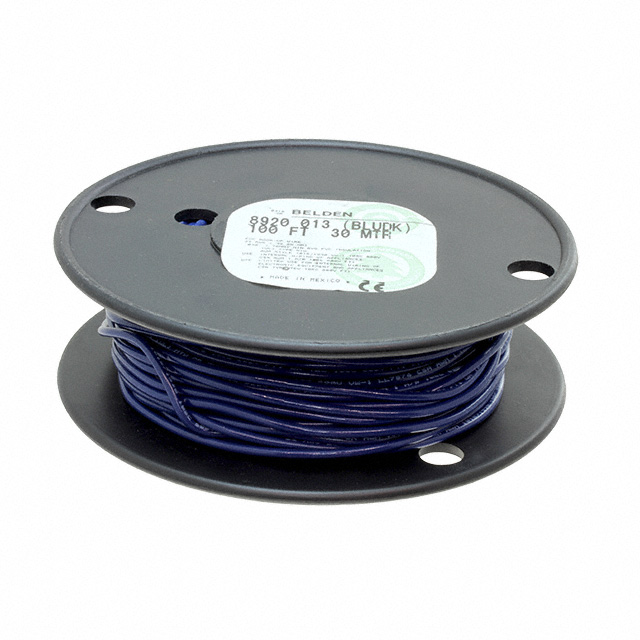

8920 013100

Active

Belden Inc.

HOOK-UP STRND 22AWG BLUE

Search across all available documentation for this part.

Active

Belden Inc.

HOOK-UP STRND 22AWG BLUE

Technical Specifications

Parameters and characteristics for this part

Specification	8920 013100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.093 in
Jacket (Insulation) Diameter [diameter]	2.36 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.76 mm
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Blue
Length [x]	30.5 m
Length [x]	100 ft
Voltage	600 V
Wire Gauge	22 AWG

Part	Wire Gauge	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Cable Type	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]
Belden Inc. 8920 0051000	22 AWG	1000 ft	304.8 m	Green	0.093 in	2.36 mm	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	Copper Tinned	7	30 AWG
Belden Inc. 8920 004100	22 AWG			Yellow	0.093 in	2.36 mm	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	Copper Tinned	7	30 AWG	30.5 m	100 ft
Belden Inc. 8920 0081000	22 AWG	1000 ft	304.8 m	Gray	0.093 in	2.36 mm	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	Copper Tinned	7	30 AWG
Belden Inc. 8920 013100	22 AWG			Blue	0.093 in	2.36 mm	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	Copper Tinned	7	30 AWG	30.5 m	100 ft
Belden Inc. 8920 0131000	22 AWG	1000 ft	304.8 m	Blue	0.093 in	2.36 mm	600 V	Hook-Up	Poly-Vinyl Chloride (PVC)	0.76 mm	0.762 mm	Copper Tinned	7	30 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 AWG Hook-Up Wire 7/30 Blue 600V 100.0' (30.5m)
