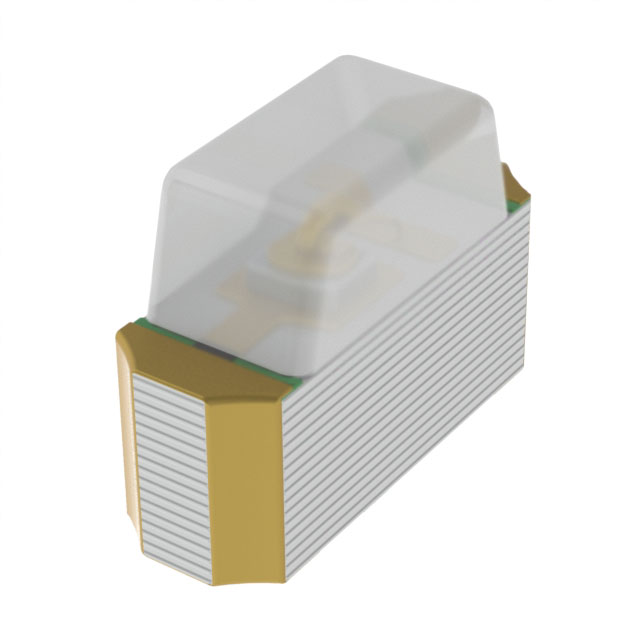

LTST-S271TBKT
ActiveDiodes Inc
LED BLUE CLEAR CHIP SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTST-S271TBKT
ActiveDiodes Inc
LED BLUE CLEAR CHIP SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTST-S271TBKT |
|---|---|
| Color | Blue |
| Configuration | Independent |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.45 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 104 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, 0604 |
| Size / Dimension [x] | 1.65 mm |
| Size / Dimension [y] | 1.15 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 470 nm |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Reel® | 1 | $ 0.41 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| Tape & Reel (TR) | 8000 | $ 0.09 | ||
| 12000 | $ 0.08 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.07 | |||
Description
General part information
LTST-S271 Series
Blue 470nm LED Indication - Discrete 3.3V 2-SMD, 0604
