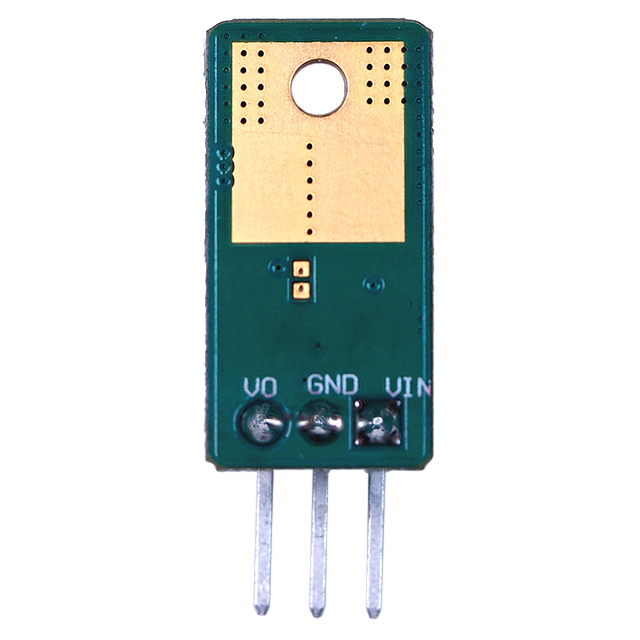

MEZD72401A-C

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 1.5V

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

DC DC CONVERTER 1.5V

Technical Specifications

Parameters and characteristics for this part

Specification	MEZD72401A-C

Applications	ITE (Commercial)
Current - Output (Max) [Max]	1 A
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3-SIP Module
Size / Dimension [x]	20 mm
Size / Dimension [x]	0.79 in
Size / Dimension [y]	0.39 "
Size / Dimension [y]	10 mm
Size / Dimension [z]	0.16 in
Size / Dimension [z]	4 mm
Type	Linear Regulator Replacement
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1	1.5 V

Part	Mounting Type	Number of Outputs	Applications	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Features	Voltage - Output 1	Package / Case	Type
MONOLITHIC POWER SYSTEMS (MPS) MEZD72401A-F	Through Hole	1	ITE (Commercial)	4.5 V	85 °C	-40 °C	1 A	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	36 V	OCP OTP OVP SCP UVLO	3.3 V	3-SIP Module	Linear Regulator Replacement
MONOLITHIC POWER SYSTEMS (MPS) MEZD72401A-G	Through Hole	1	ITE (Commercial)	6.5 V	85 °C	-40 °C	1 A	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	36 V	OCP OTP OVP SCP UVLO	5 V	3-SIP Module	Linear Regulator Replacement
MONOLITHIC POWER SYSTEMS (MPS) MEZD72401A-C	Through Hole	1	ITE (Commercial)	4.5 V	85 °C	-40 °C	1 A	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	36 V	OCP OTP OVP SCP UVLO	1.5 V	3-SIP Module	Linear Regulator Replacement
MONOLITHIC POWER SYSTEMS (MPS) MEZD72401A-B	Through Hole	1	ITE (Commercial)	4.5 V	85 °C	-40 °C	1 A	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	36 V	OCP OTP OVP SCP UVLO	1.2 V	3-SIP Module	Linear Regulator Replacement
MONOLITHIC POWER SYSTEMS (MPS) MEZD72401A-E	Through Hole	1	ITE (Commercial)	4.5 V	85 °C	-40 °C	1 A	0.16 in	20 mm	0.39 "	10 mm	0.79 in	4 mm	36 V	OCP OTP OVP SCP UVLO	2.5 V	3-SIP Module	Linear Regulator Replacement

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.29

General part information

Linear Regulator Replacement DC DC Converter 1 Output 1.5V 1A 4.5V - 36V Input
