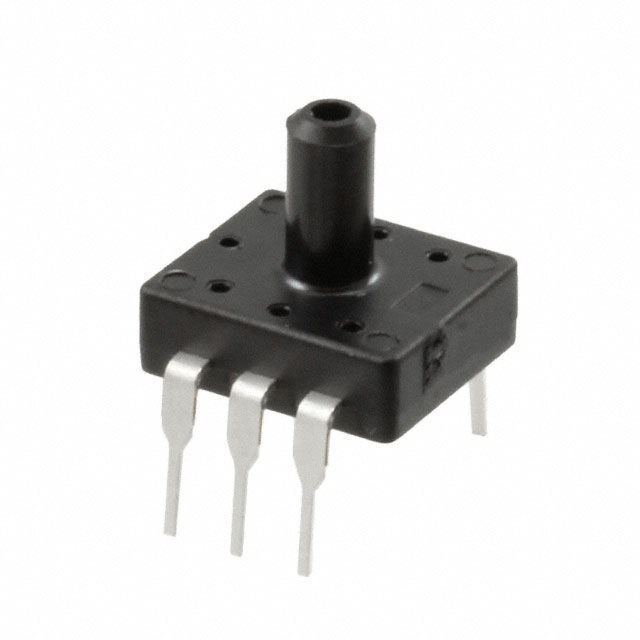

ADP42310

Obsolete

Panasonic Industrial Automation Sales

SENSOR 7.11PSIG 0.12" 0.1V 6DIP

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

SENSOR 7.11PSIG 0.12" 0.1V 6DIP

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Features	Port Size	Port Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Output [Min]	Output [Max]	Output Type	Termination Style	Supplier Device Package	Maximum Pressure [Max]	Maximum Pressure [Max]	Mounting Type	Port Style	Operating Pressure	Operating Pressure
Panasonic Industrial Automation Sales ADP42310	Board Mount	Temperature Compensated	Male - Tube	0.12 " 3 mm	6-DIP	100 °C	-20 C	Gauge	0 mV	100 mV	Wheatstone Bridge	PC Pin	6-DIP	98 kPa	14.21 PSI	Through Hole	Barbless	7.11 PSI	49 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 7.11PSI (49kPa) Gauge Male - 0.12" (3mm) Tube 0 mV ~ 100 mV 6-DIP
