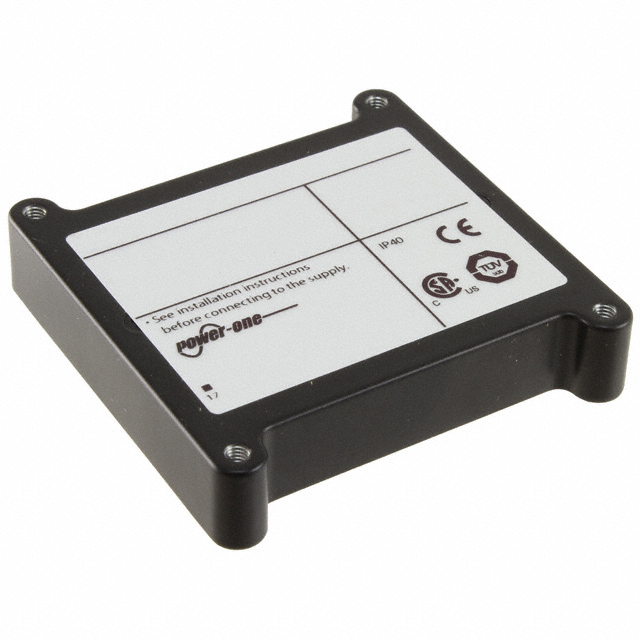

36IBX15-50-0G

Active

Bel Power Solutions

DC DC CONVERTER 50-160V

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 50-160V

Technical Specifications

Parameters and characteristics for this part

Specification	36IBX15-50-0G

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2.2 A
Efficiency	95 %
Features	UVLO, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	17-DIP Module
Package / Case	10 Leads
Size / Dimension [x]	2.16 in
Size / Dimension [x]	54.9 mm
Size / Dimension [y]	54.7 mm
Size / Dimension [y]	2.15 "
Size / Dimension [z]	11.5 mm
Size / Dimension [z]	0.45 "
Type	Non-Isolated PoL Module, Conformal Coated
Voltage - Input (Max) [Max]	160 V
Voltage - Input (Min) [Min]	24 V
Voltage - Output 1 [Max]	160 V
Voltage - Output 1 [Min]	50 V

DC DC CONVERTER 50-160V

Part	Mounting Type	Features	Package / Case	Package / Case	Type	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Efficiency	Number of Outputs
Bel Power Solutions 36IBX15-50-0G	Through Hole	OTP, UVLO	17-DIP Module	10 Leads	Conformal Coated, Non-Isolated PoL Module	50 V	160 V	160 V	2.2 A	ITE (Commercial)	54.7 mm	2.15 "	11.5 mm	2.16 in	0.45 "	54.9 mm	-40 °C	70 °C	24 V	95 %	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	48	$ 154.82

General part information

Non-Isolated PoL Module, Conformal Coated DC DC Converter 1 Output 50 ~ 160V 2.2A 24V - 160V Input

Technical documentation and resources

No documents available
