FST-22A-5
ActiveTE Connectivity AMP Connectors

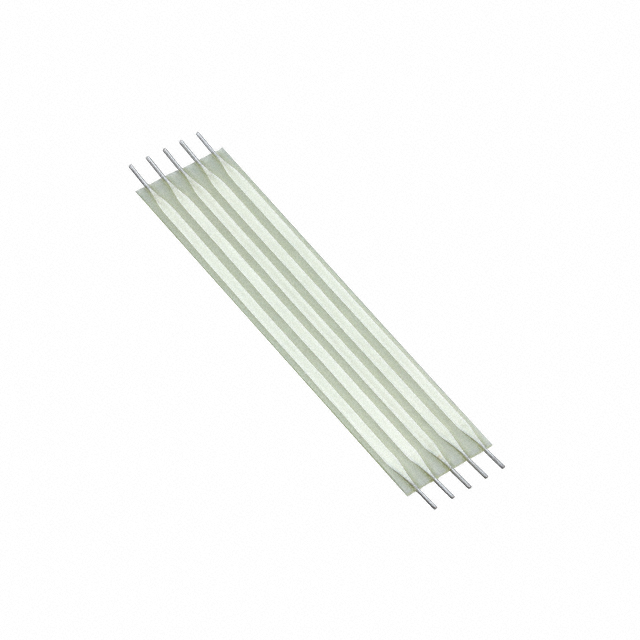

CABLE FLXSTRP 5POS 2.54MM 2"
Deep-Dive with AI
Search across all available documentation for this part.
FST-22A-5
ActiveTE Connectivity AMP Connectors
CABLE FLXSTRP 5POS 2.54MM 2"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FST-22A-5 | FST Series |
|---|---|---|
| Cable Type | Flexstrip | Flexstrip |
| Length | 50.8 mm | 12.7 - 152.4 mm |
| Length | 2 in | 0.5 - 6 " |
| Length | - | 0.9 - 5.75 in |
| Length | - | 22.86 - 146.05 mm |
| Length - Exposed Ends [x] | 0.125 in | 0.125 - 0.161 in |
| Length - Exposed Ends [x] | 3.18 mm | 3.18 - 4.09 mm |
| Number of Conductors | 5 | 2 - 34 |
| Pitch [x] | 2.54 mm | 1.27 - 5.08 mm |
| Pitch [x] | 0.1 in | 0.05 - 0.2 in |
| Termination Style | Completely Exposed Wires on Both Sides | Completely Exposed Wires on Both Sides, Staggered, Completely Exposed Wires on Both Sides, Completely Exposed Wires on Both Sides, Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.39 | |
| 10 | $ 2.13 | |||
| 25 | $ 2.12 | |||
| 50 | $ 2.10 | |||
| 100 | $ 1.92 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.74 | |||
| 1000 | $ 1.56 | |||
| 3000 | $ 1.44 | |||
FST Series
CABLE FLXSTRP 34POS 1.91MM 1.5"
| Part | Pitch [x] | Pitch [x] | Length - Exposed Ends [x] | Length - Exposed Ends [x] | Length | Length | Cable Type | Number of Conductors | Termination Style | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors FST-61.5D-34 | 0.075 in | 1.91 mm | 0.125 in | 3.18 mm | 1.5 " | 38.1 mm | Flexstrip | 34 | Completely Exposed Wires on Both Sides, Staggered | ||
TE Connectivity AMP Connectors FST-23A-16 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 16 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-25.75A-16 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 16 | Completely Exposed Wires on Both Sides | 5.75 in | 146.05 mm | ||
TE Connectivity AMP Connectors FST-23A-8 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 8 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-21A-4 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 4 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-22A-5 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 5 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-23A-25 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 25 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-21.6A-14 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 1.6 in | 40.64 mm | Flexstrip | 14 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-13A-27 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 27 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-23A-6 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 6 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-62B-20 | 0.075 in | 1.91 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 20 | Completely Exposed Wires on Both Sides, Right Angle | ||
TE Connectivity AMP Connectors FST-2.9AB-13 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 13 | Completely Exposed Wires on Both Sides | 0.9 in | 22.86 mm | ||
TE Connectivity AMP Connectors FST-11A-10 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | Flexstrip | 10 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-22A-12 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 12 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-26A-3 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 6 in | 152.4 mm | Flexstrip | 3 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-23A-25V3 | 0.1 in | 2.54 mm | 0.161 in | 4.09 mm | 3 in | 76.2 mm | Flexstrip | 25 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-21A-12 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 12 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-26A-4 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 6 in | 152.4 mm | Flexstrip | 4 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-11A-11 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | Flexstrip | 11 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-12A-15 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 15 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-12B-5 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 5 | Completely Exposed Wires on Both Sides, Right Angle | ||
TE Connectivity AMP Connectors FST-21A-3 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 3 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-21.25A-12 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 1.25 in | 31.75 mm | Flexstrip | 12 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-41B-5 | 0.15 in | 3.81 mm | 0.125 in | 3.18 mm | Flexstrip | 5 | Completely Exposed Wires on Both Sides, Right Angle | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-11A-8 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | Flexstrip | 8 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-22A-25 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 2 in | 50.8 mm | Flexstrip | 25 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-21.5A-20 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 1.5 " | 38.1 mm | Flexstrip | 20 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-2.9A-10 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 10 | Completely Exposed Wires on Both Sides | 0.9 in | 22.86 mm | ||
TE Connectivity AMP Connectors FST-24.5A-16 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 4.5 in | 114.3 mm | Flexstrip | 16 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-11A-20 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | Flexstrip | 20 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-21A-2 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 2 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-2.5A-22 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | 0.5 in | 12.7 mm | Flexstrip | 22 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-13A-28 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | 3 in | 76.2 mm | Flexstrip | 28 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-21A-13 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 13 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-11.8D-14 | 0.05 in | 1.27 mm | 0.125 in | 3.18 mm | 1.8 in | 45.72 mm | Flexstrip | 14 | Completely Exposed Wires on Both Sides, Staggered | ||
TE Connectivity AMP Connectors FST-21A-7 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 7 | Completely Exposed Wires on Both Sides | 1 in | 25.4 mm | ||
TE Connectivity AMP Connectors FST-54A-6 | 0.2 in | 5.08 mm | 0.125 in | 3.18 mm | 4 in | 101.6 mm | Flexstrip | 6 | Completely Exposed Wires on Both Sides | ||
TE Connectivity AMP Connectors FST-22.5A-30 | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm | Flexstrip | 30 | Completely Exposed Wires on Both Sides | 2.5 in | 63.5 mm |
Description
General part information
FST Series
5 Position Flexstrip Cable 0.100" (2.54mm) 2.000" (50.80mm)
