0928-0-15-20-77-14-11-0
ActiveMill-Max Manufacturing Corp.

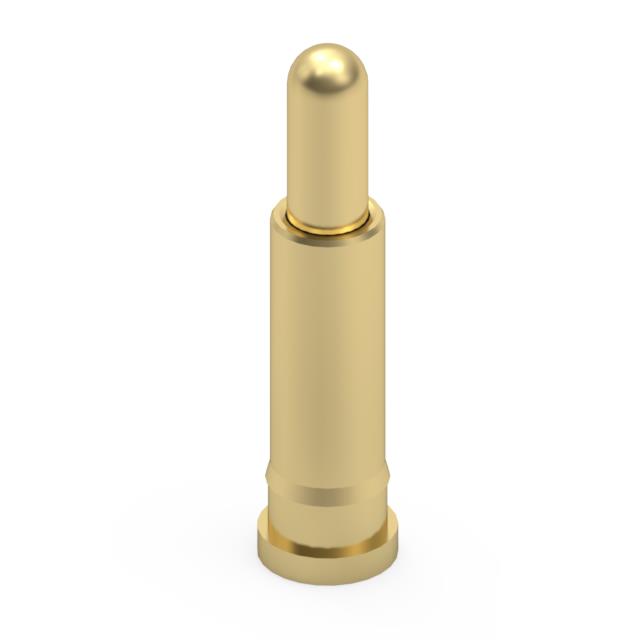

CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0928-0-15-20-77-14-11-0
ActiveMill-Max Manufacturing Corp.
CONTACT SPRING LOADED SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0928-0-15-20-77-14-11-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 5.2 A |
| Mating Cycles | 1000000 |
| Maximum Working Height [Max] | 7.49 mm |
| Maximum Working Height [Max] | 0.295 in |
| Minimum Working Height [Min] | 0.217 in |
| Minimum Working Height [Min] | 5.5 mm |
| Mounting Type | Surface Mount |
| Operating Force - Mid Compression | 60 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [custom] | 1.83 mm |
| Pad Layout Dimension [custom] | 0.072 in |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
| Recommended Working Height | 6.5 mm |
| Recommended Working Height | 0.256 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.78 | |
| 10 | $ 0.66 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.59 | |||
| 250 | $ 0.54 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.43 | |||
| 2500 | $ 0.39 | |||
Description
General part information
0928-0 Series
Contact Spring Surface Mount
Documents
Technical documentation and resources
No documents available
