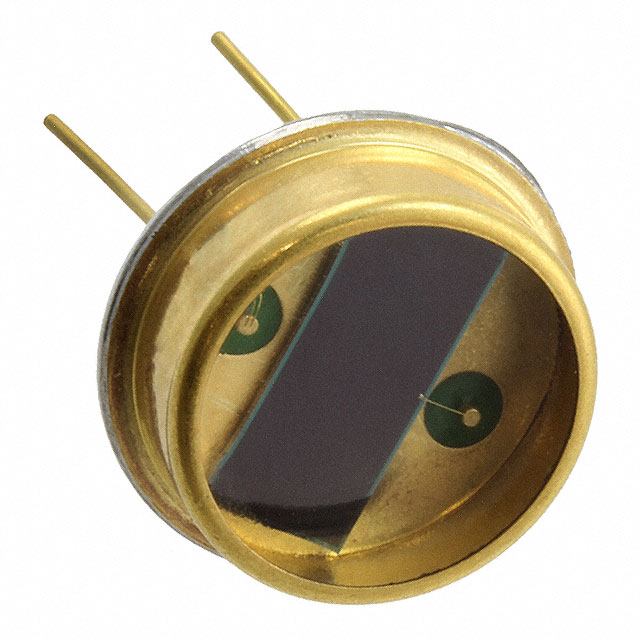

ODD-42WB

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO8

Search across all available documentation for this part.

Active

Opto Diode Corp

SENSOR PHOTODIODE 940NM TO8

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 940NM TO8

Part	Color - Enhanced	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Active Area	Mounting Type	Responsivity @ nm	Current - Dark (Typ)	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Response Time	Wavelength
Opto Diode Corp ODD-42WB	Blue	60 V	100 °C	-55 °C	42 mm˛	Through Hole	0.4 A/W	11 nA	1100 nm	400 nm	30 ns	940 nm
Opto Diode Corp ODD-42W	Red	60 V	100 °C	-55 °C	42 mm˛	Through Hole	0.4 A/W	11 nA	1100 nm	400 nm	30 ns	940 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 940nm 30ns
