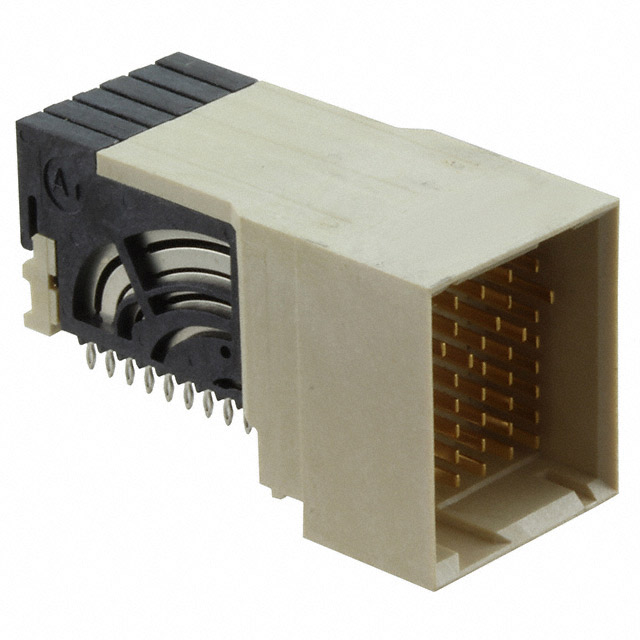

10123543-111LF

Active

Amphenol ICC (FCI)

VS2 3X6 RH ST 1S D

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

VS2 3X6 RH ST 1S D

Technical Specifications

Parameters and characteristics for this part

Specification	10123543-111LF

Color	Natural
Connector Style	High Speed
Connector Type	Header, Male Pins
Connector Usage	Daughtercard
Current Rating (Amps)	500 mA
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	6
Number of Positions	54
Number of Positions Loaded	All
Number of Rows	9
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	30 VAC

Part	Number of Columns	Connector Style	Connector Type	Material Flammability Rating	Contact Finish	Mounting Type	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Connector Usage	Termination	Number of Rows	Color	Number of Positions	Current Rating (Amps)	Pitch [x]	Pitch [x]	Voltage Rating
Amphenol ICC (FCI) 10123543-102LF	6	High Speed	Header Male Pins	UL94 V-0	Gold	Board Edge Right Angle Through Hole	All	85 °C	-55 °C	Daughtercard	Press-Fit	9	Black	54
Amphenol ICC (FCI) 10123543-111LF	6	High Speed	Header Male Pins	UL94 V-0		Board Edge Right Angle Through Hole	All	85 °C	-55 °C	Daughtercard	Press-Fit	9	Natural	54	500 mA	0.079 in	2 mm	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

54 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural High Speed
