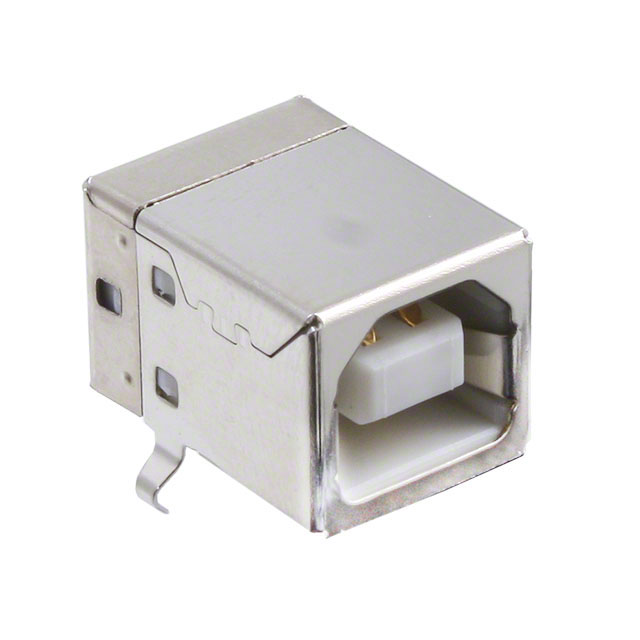

1002-003-02000

Active

CnC Tech, LLC

CONN USB 2.0 TYPE B RCP 4 POS 2MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN USB 2.0 TYPE B RCP 4 POS 2MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	1002-003-02000

Connector Type	USB-B
Current Rating (Amps)	1.5 A
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Horizontal
Mounting Type	Through Hole, Right Angle
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell/Shielding Material	Steel
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 V

CONN USB 2.0 TYPE B RCP 4 POS 2MM SOLDER RA THRU-HOLE 4 TERMINAL 1 PORT

Part	Number of Ports	Shell/Shielding Material	Mating Cycles	Mounting Feature	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Termination	Gender	Mounting Type	Number of Contacts [custom]	Specifications	Voltage - Rated	Current Rating (Amps)
CnC Tech, LLC 1002-003-02000	1	Steel	1500	Horizontal	USB-B	85 °C	-55 °C	UL94 V-0	Solder	Receptacle	Through Hole, Right Angle	4	USB 2.0	30 V	1.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
