61-2501.0/D

Active

EAO

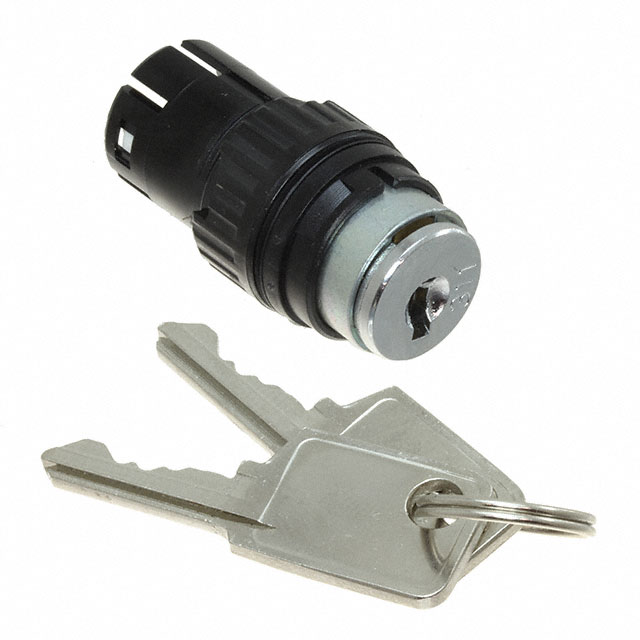

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NEUTRAL MOMENTARY-REST(A)-MOMENTARY 311 ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

EAO

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NEUTRAL MOMENTARY-REST(A)-MOMENTARY 311 ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	61-2501.0/D

(Select First, Then Apply Filters) Compatible Series	EAO, 61
Actuator Type	Keylock
Illumination	Non-Illuminated
Panel Cutout Dimensions	16.2 mm
Requires	Contact Block(s)
Type	Momentary

KEYLOCK SWITCH-ACTUATOR 3 POSITIONS NEUTRAL MOMENTARY-REST(A)-MOMENTARY 311 ROHS COMPLIANT: YES

Part	Requires	Illumination	Type	(Select First, Then Apply Filters) Compatible Series	Actuator Type	Panel Cutout Dimensions
EAO 61-2501.0/D	Contact Block(s)	Non-Illuminated	Momentary	61, EAO	Keylock	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Configurable Switch Body Keylock Non-Illuminated
