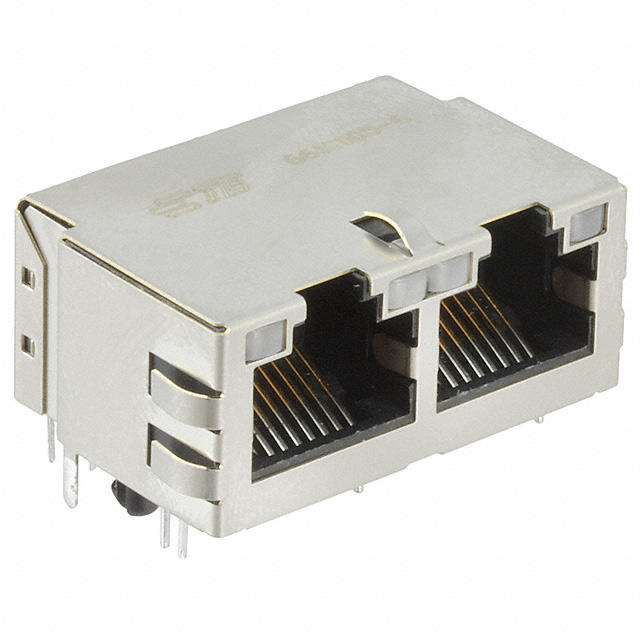

6610005-6

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T

Technical Specifications

Parameters and characteristics for this part

Specification	6610005-6

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Board Lock, Decoupling Capacitance
Height Above Board [z]	13.97 mm
Height Above Board [z]	0.55 "
Housing Material	Polyethylene Terephthalate (PET), Polyester
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	12
Number of Ports	2
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

CONN JACK 2PORT 1000 BASE-T

Part	LED Color	Number of Ports	Tab Direction	Number of Rows	Mounting Type	Housing Material	Number of Cores per Jack	Orientation	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Features	Termination	Shield Material	Contact Finish	Contact Material	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Shielding
TRP Connector B.V. 6610005-6	Green, Yellow	2	Up	1	Through Hole	Polyester, Polyethylene Terephthalate (PET)	12	90 °	RJ45	70 °C	0 °C	10/100/1000 Base-T, AutoMDIX	Board Lock, Decoupling Capacitance	Solder	Brass	Gold	Phosphor Bronze	13.97 mm	0.55 "	50 µin	1.27 µm	Shielded, EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
