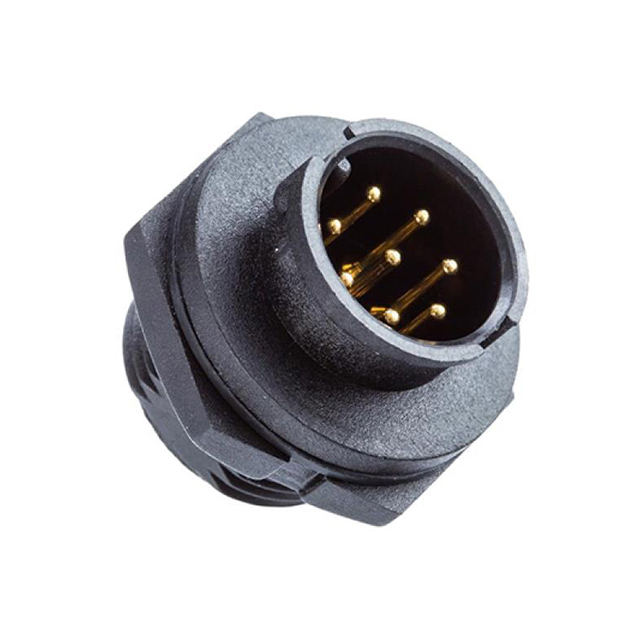

ABD-07RMMS-LC7001

Active

Amphenol LTW

STANDARD STAMPING PIN

Search across all available documentation for this part.

Active

Amphenol LTW

STANDARD STAMPING PIN

Technical Specifications

Parameters and characteristics for this part

Specification	ABD-07RMMS-LC7001

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Finish	Nickel
Shell Size - Insert	B
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Shielding	Contact Material	Voltage Rating	Insert Material	Color	Current Rating (Amps)	Primary Material	Shell Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Connector Type	Mounting Feature	Fastening Type	Number of Positions	Contact Finish - Mating	Orientation	Shell Size - Insert
Amphenol LTW ABD-07RMMS-LC7001	Unshielded	Copper Alloy	300 VDC	Polyamide (PA) Nylon Glass Filled	Black	5 A	Plastic	Nickel	UL94 V-0	-40 °C	105 ░C	IP67 - Dust Tight Waterproof	Male Pins Receptacle	Bulkhead - Rear Side Nut	Bayonet Lock	7	Gold	Keyed	B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder Cup
