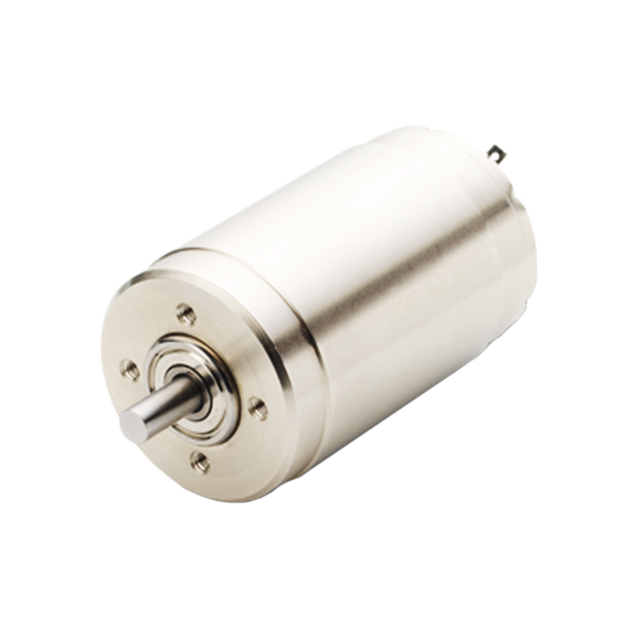

35NT2R32-416SP.1

Active

Portescap

STANDARD MOTOR 9000 RPM 24V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 9000 RPM 24V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 9000 RPM 24V

Part	Voltage - Rated	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Motor Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Function	Power - Rated	Mounting Hole Spacing	Mounting Hole Spacing	Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Weight	Weight	RPM
Portescap 35NT2R32-416SP.1	24 VDC	Solder Tab	-30 ░C	85 °C	Brushed	0.197 in	5 mm	Standard	37 W	22 mm	0.866 in	DC Motor	12.5 mm	0.492 in	1.378 in	35 mm	7.94 oz-in	56 mNm	319.78 g	0.705 lb	9000 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 9000 RPM 37W 24VDC
