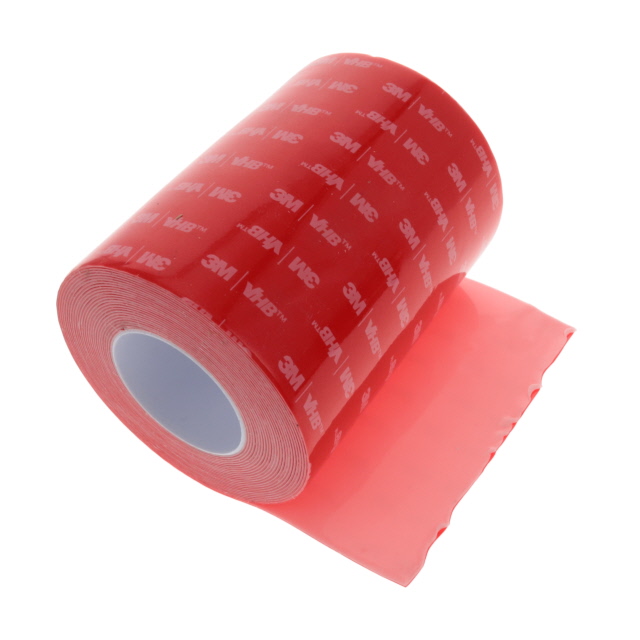

LSE-060WF-4-5

Active

3M (TC)

TAPE DBL SIDED WHITE 4"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LSE-060WF-4-5

Active

3M (TC)

TAPE DBL SIDED WHITE 4"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LSE-060WF-4-5

Adhesive	Acrylic
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	25 °C
Storage/Refrigeration Temperature [Max]	77 °F
Storage/Refrigeration Temperature [Min]	16 °C
Storage/Refrigeration Temperature [Min]	60 °F
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	100 °F
Temperature Range [Max]	38 °C
Temperature Range [Min]	10 °C
Temperature Range [Min]	50 °F
Thickness	23.6 mils
Thickness	0.6 mm
Thickness	0.0236 in
Usage	Bonding
Width [x]	4 "
Width [x]	101.6 mm

LSE Series

Part	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Usage	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width [y]	Width [y]	Length	Length	Length	Color	Adhesive	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Thickness	Thickness	Thickness	Shelf Life Start	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Thickness - Adhesive [custom]	Shelf Life	Tape Type	Width [x]	Width [x]	Width	Width	Width	Thickness [custom]	Thickness [custom]	Thickness [custom]
3M (TC) LSE-160WF-2-5	0.005 "	5 mils	0.127 mm	Bonding	25 °C	16 °C	60 °F	77 °F	2 "	50.8 mm	4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	1.575 mm	0.062 in	62 mils	Date of Manufacture	1.448 mm	57 mils	0.057 "	18 Months	Double Coated Double Sided
3M (TC) LSE-060WF-4-5				Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	0.6 mm	0.0236 in	23.6 mils	Date of Manufacture				18 Months	Double Coated Double Sided	4 "	101.6 mm
3M (TC) LSE-110WF-0.5-5				Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C				Date of Manufacture				18 Months	Double Coated Double Sided			0.5 in	12.7 mm	0.5 in	1.1 mm	43.3 mils	0.0433 "
3M (TC) LSE-060WFSQ-12(6)				Bonding	25 °C	16 °C	60 °F	77 °F			304.8 mm	12 "	1 ft	White	Acrylic	100 °F	10 °C	50 °F	38 °C	0.6 mm	0.0236 in	23.6 mils	Date of Manufacture				18 Months	Double Coated Double Sided	12 in	304.8 mm
3M (TC) LSE-160WF-0.75-5	0.005 "	5 mils	0.127 mm	Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	1.575 mm	0.062 in	62 mils	Date of Manufacture	1.448 mm	57 mils	0.057 "	18 Months	Double Coated Double Sided			19.05 mm	0.75 in	0.75 in
3M (TC) LSE-060WF-0.75-5				Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	0.6 mm	0.0236 in	23.6 mils	Date of Manufacture				18 Months	Double Coated Double Sided			19.05 mm	0.75 in	0.75 in
3M (TC) LSE-110WF-0.75-5				Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C				Date of Manufacture				18 Months	Double Coated Double Sided			19.05 mm	0.75 in	0.75 in	1.1 mm	43.3 mils	0.0433 "
3M (TC) LSE-160WF-6-5	0.005 "	5 mils	0.127 mm	Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	1.575 mm	0.062 in	62 mils	Date of Manufacture	1.448 mm	57 mils	0.057 "	18 Months	Double Coated Double Sided	6 in	152.4 mm
3M (TC) LSE-160WF-12-5	0.005 "	5 mils	0.127 mm	Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C	1.575 mm	0.062 in	62 mils	Date of Manufacture	1.448 mm	57 mils	0.057 "	18 Months	Double Coated Double Sided	12 in	304.8 mm
3M (TC) LSE-110WF-12-5				Bonding	25 °C	16 °C	60 °F	77 °F			4.6 m	15 ft	5 yd	White	Acrylic	100 °F	10 °C	50 °F	38 °C				Date of Manufacture				18 Months	Double Coated Double Sided	12 in	304.8 mm				1.1 mm	43.3 mils	0.0433 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 89.83
		10	$ 84.22
		25	$ 78.60
		50	$ 74.67

Description

General part information

LSE Series

Double Coated, Double Sided Tape Acrylic Adhesive White 4.00" (101.60mm) X 15' (4.6m) 5 yds
