0339-0-15-01-15-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
0339-0-15-01-15-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0339-0-15-01-15-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.81 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.032 in |
| Accepts Pin Diameter [Min] [diameter] | 0.02 " |
| Accepts Pin Diameter [Min] [diameter] | 0.51 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.068 in |
| Flange Diameter [diameter] | 1.73 mm |
| Length - Overall | 4.83 mm |
| Length - Overall | 0.19 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.19 mm |
| Pin Hole Diameter [diameter] | 0.047 " |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.00 | |
| 10 | $ 0.87 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.81 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.70 | |||
| 500 | $ 0.65 | |||
Description
General part information
0339-0 Series

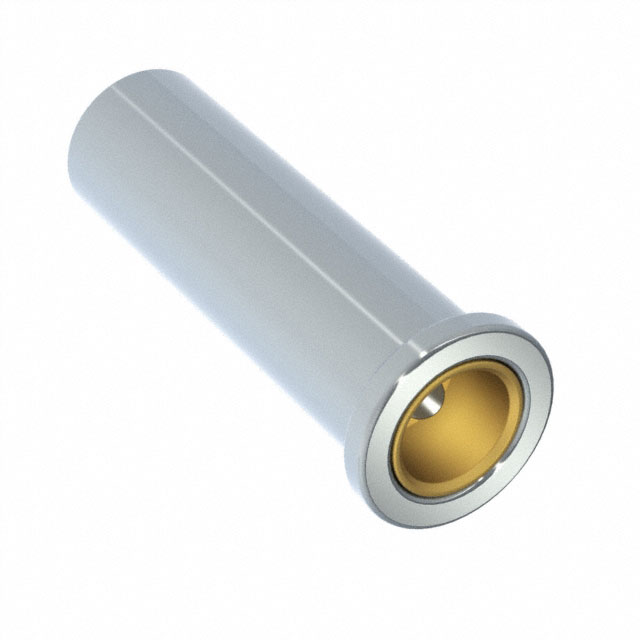

Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
