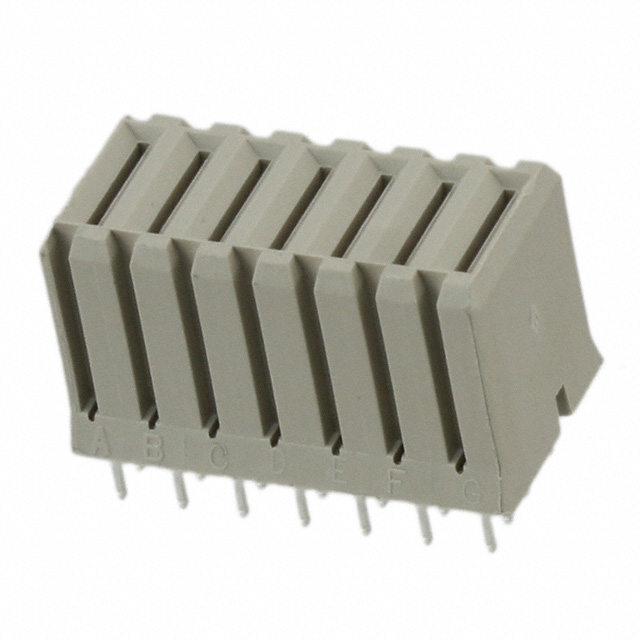

ActiveCONNECTOR, 7 CONTACTS, 3 MM, RECEPTACLE, PRESS FIT, 1 ROWS

5223995-4
ActiveCONNECTOR, 7 CONTACTS, 3 MM, RECEPTACLE, PRESS FIT, 1 ROWS
Description
General part information
5223995 Series
The 5223995-4 is a 7-position 1-row vertical UPM expanded Receptacle Assembly with phosphor bronze contacts and natural colour liquid crystal polymer housing. The touch-safe receptacle is applied to the hot side, which is typically the backplane side of the connection. It offers standard power grade which carries 10A per contact. The low contact normal force, available lubricated surface coating and high conductivity materials combine to produce a high durability cycle rating and high current density. In addition, the high temperature housing and contact materials make this power module.
Technical Specifications
Parameters and characteristics for this part
| Specification | 5223995-4 |
|---|---|
| Color | Gray |
| Connector Style | Blade Power |
| Connector Type | Receptacle, Female Blade Sockets |
| Connector Usage | Backplane |
| Contact Finish | Gold-Palladium, Gold |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Power Contacts (Typical) | 7 |
| Termination | Press-Fit |
| Voltage Rating | 250 V |
