ISL9219IRZ-TR5332

Active

Intersil

IC BATT CHG LI-ION 1CELL 20QFN

Search across all available documentation for this part.

Active

Intersil

IC BATT CHG LI-ION 1CELL 20QFN

Technical Specifications

Parameters and characteristics for this part

Specification	ISL9219IRZ-TR5332

Battery Chemistry	Lithium Ion/Polymer
Battery Pack Voltage	4.2 V
Charge Current - Max [Max]	1 A
Current - Charging	Constant - Programmable
Fault Protection	Over Voltage, Over Temperature
Interface	USB
Mounting Type	Surface Mount
Number of Cells	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

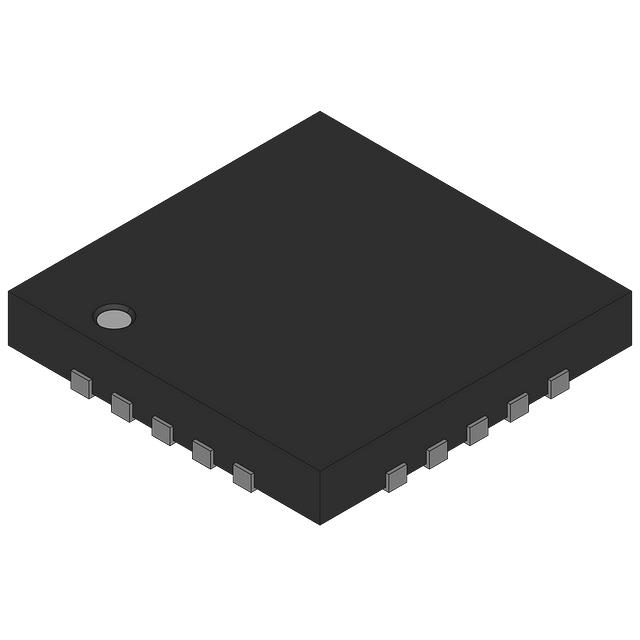

Package / Case	20-VFQFN Exposed Pad
Programmable Features	Timer
Supplier Device Package	20-QFN (3x4)
Voltage - Supply (Max) [Max]	6 V

IC BATT CHG LI-ION 1CELL 20QFN

Part	Package / Case	Programmable Features	Supplier Device Package	Number of Cells	Current - Charging	Interface	Fault Protection	Battery Chemistry	Battery Pack Voltage	Charge Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply (Max) [Max]
Intersil ISL9219IRZ-TR5332	20-VFQFN Exposed Pad	Timer	20-QFN (3x4)	1	Constant - Programmable	USB	Over Temperature, Over Voltage	Lithium Ion/Polymer	4.2 V	1 A	85 °C	-40 °C	Surface Mount	6 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 1.00

General part information

Charger IC Lithium Ion/Polymer 20-QFN (3x4)

Technical documentation and resources

No documents available
