MAX11835EWA+T

Active

Analog Devices Inc./Maxim Integrated

IC MOTOR DRIVER 1.7V-3.6V 25WLP

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC MOTOR DRIVER 1.7V-3.6V 25WLP

Technical Specifications

Parameters and characteristics for this part

Specification	MAX11835EWA+T

Applications	Haptic Feedback
Function	Controller - Commutation, Direction Management
Interface	I2C
Motor Type - AC, DC	Piezo
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

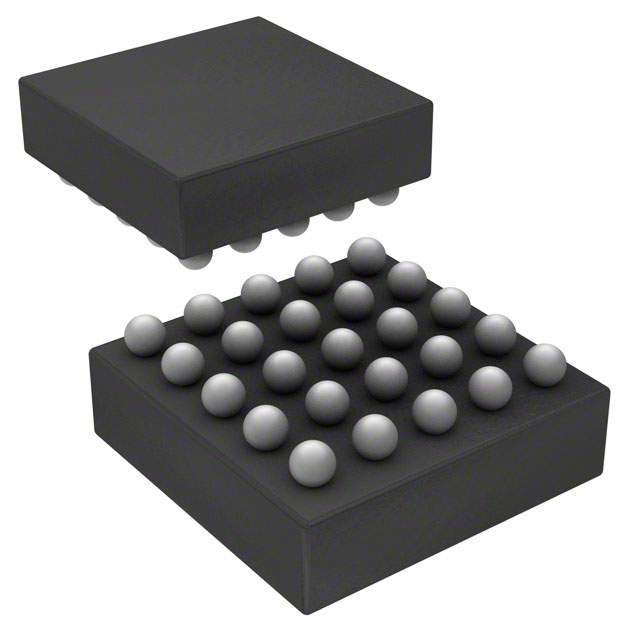

Package / Case	WLBGA, 25-WFBGA
Supplier Device Package	25-WLP (2.31x2.31)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

IC MOTOR DRIVER 1.7V-3.6V 25WLP

Part	Motor Type - AC, DC	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Interface	Mounting Type	Supplier Device Package	Function	Package / Case
Analog Devices Inc./Maxim Integrated MAX11835EWA+T	Piezo	3.6 V	1.7 V	85 °C	-40 °C	Haptic Feedback	I2C	Surface Mount	25-WLP (2.31x2.31)	Controller - Commutation, Direction Management	25-WFBGA, WLBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver I2C 25-WLP (2.31x2.31)

Technical documentation and resources
