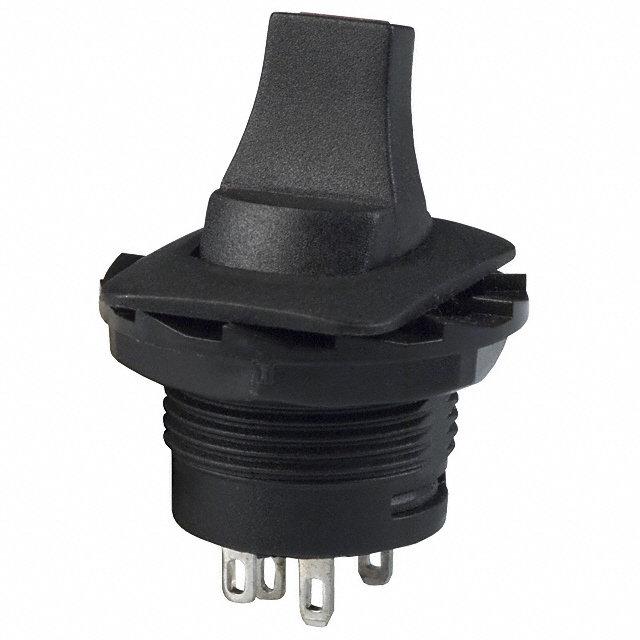

RR3405CLGRN

Active

E-Switch

SWITCH ROCKER SPDT 10A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER SPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RR3405CLGRN

Actuator Marking	No Marking
Actuator Type	Paddle - Illuminated
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	10 A
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.4 VDC
Mounting Type	Panel Mount, Threaded Body with Nut
Panel Cutout Dimensions [diameter]	18 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Circuit	Actuator Marking	Panel Cutout Dimensions [diameter]	Switch Function	Current Rating (Amps)	Mounting Type	Actuator Type	Color - Actuator/Cap	Illumination Type, Color	Voltage Rating - AC	Illumination Voltage (Nominal)	Termination Style
E-Switch RR3405CLGRN	SPDT	No Marking	18 mm	On-On	10 A	Panel Mount Threaded Body with Nut	Paddle - Illuminated	Black	Green LED	125 V	2.4 VDC	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 10A (AC) 125 V Panel Mount, Threaded Body with Nut
