1-967250-1
ActiveTE Connectivity AMP Connectors

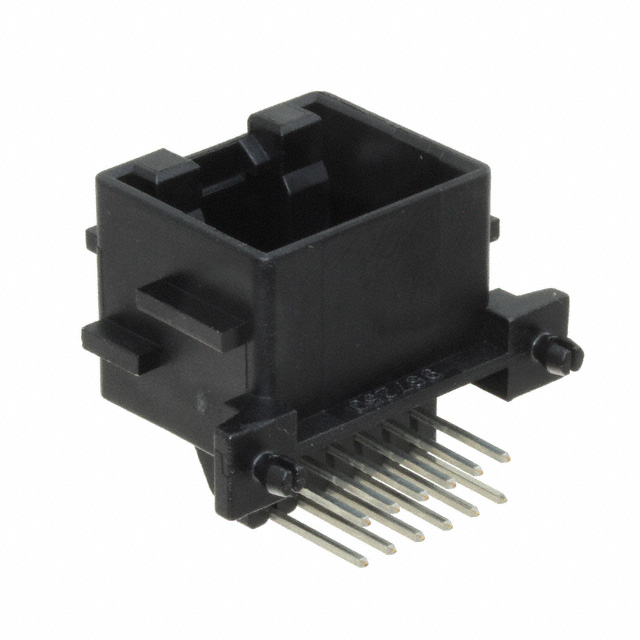

CONN HEADER R/A 12POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-967250-1
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 12POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-967250-1 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Insulation Color | Black |
| Insulation Height | 0.772 " |
| Insulation Height | 19.6 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.42 | |
| 10 | $ 2.00 | |||
| 80 | $ 1.69 | |||
| 440 | $ 1.47 | |||
| 945 | $ 1.38 | |||
| 4900 | $ 1.21 | |||
967250 Series
CONN HEADER R/A 12POS 2.54MM
| Part | Insulation Height | Insulation Height | Fastening Type | Pitch - Mating | Pitch - Mating | Contact Shape | Mounting Type | Contact Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Connector Type | Termination | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Number of Positions | Insulation Material | Insulation Color | Applications | Shrouding | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Number of Positions Loaded | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-967250-1 | 0.772 " | 19.6 mm | Friction Lock | 0.1 in | 2.54 mm | Square | Through Hole, Right Angle | Male Pin | 2.54 mm | 0.1 in | Header | Solder | Tin | 0.13 in | 3.3 mm | 12 | Polybutylene Terephthalate (PBT), Glass Filled | Black | Automotive | Shrouded - 4 Wall | Copper Alloy | 85 °C | -40 °C | 2 | All | Board to Cable/Wire |
Description
General part information
967250 Series
Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
