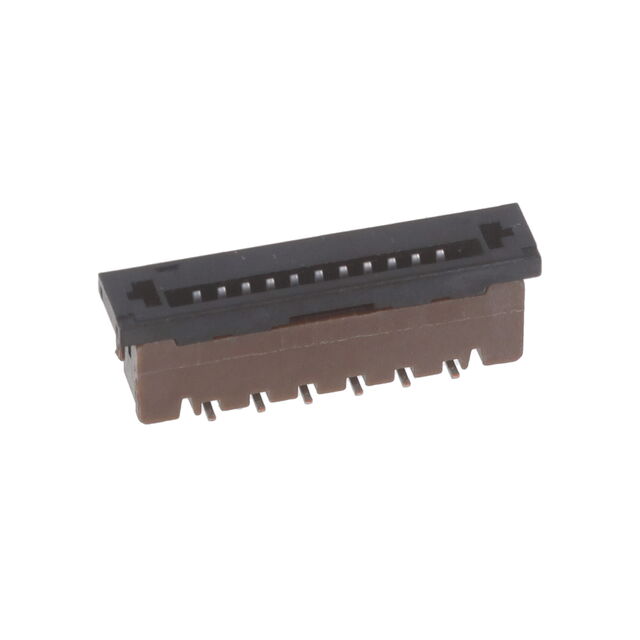

SFW11S-2STE1LF

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 11POS 1MM SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN FFC FPC VERT 11POS 1MM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SFW11S-2STE1LF

Actuator Color	Black
Actuator Material	Thermoplastic, Glass Filled
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Vertical - 1 Sided
Contact Finish	Tin
Contact Material	Phosphor Bronze
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	5.3 mm
Height Above Board	0.209 in
Housing Color	Brown
Housing Material	Thermoplastic, Glass Filled
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount
Number of Positions	11
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.039 in
Pitch [x]	1 mm
Termination	Solder
Voltage Rating	100 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Pitch [x]	Pitch [x]	Number of Positions	FFC, FCB Thickness	Termination	Voltage Rating	Actuator Material	Connector/Contact Type	Height Above Board	Height Above Board	Housing Material	Material Flammability Rating	Flat Flex Type	Mating Cycles	Housing Color	Actuator Color	Cable End Type	FFC, FCB Thickness [z]	Locking Feature
Amphenol ICC (FCI) SFW11S-2STME1LF	Surface Mount	105 ░C	-55 °C	Tin	Phosphor Bronze	0.039 in	1 mm	11	0.33 mm	Solder	100 V	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	5.3 mm	0.209 in	Thermoplastic Glass Filled	UL94 V-0	FFC FPC	20	Brown
Amphenol ICC (FCI) SFW11S-2STE1LF	Surface Mount	105 ░C	-55 °C	Tin	Phosphor Bronze	0.039 in	1 mm	11		Solder	100 V	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	5.3 mm	0.209 in	Thermoplastic Glass Filled	UL94 V-0	FFC FPC	20	Brown	Black	Straight Tapered	0.3 mm 0.33 mm	Slide Lock
Amphenol ICC (FCI) SFW11S-2STAE1LF	Surface Mount	85 °C	-55 °C	Gold	Phosphor Bronze	0.039 in	1 mm	11	0.3 mm	Solder	100 V	Thermoplastic Glass Filled	Contacts Vertical - 1 Sided	5.3 mm	0.209 in	Thermoplastic Glass Filled	UL94 V-0	FPC	20	Brown	Black	Tapered		Slide Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
