1896/9C SL005

Active

ALPHA WIRE

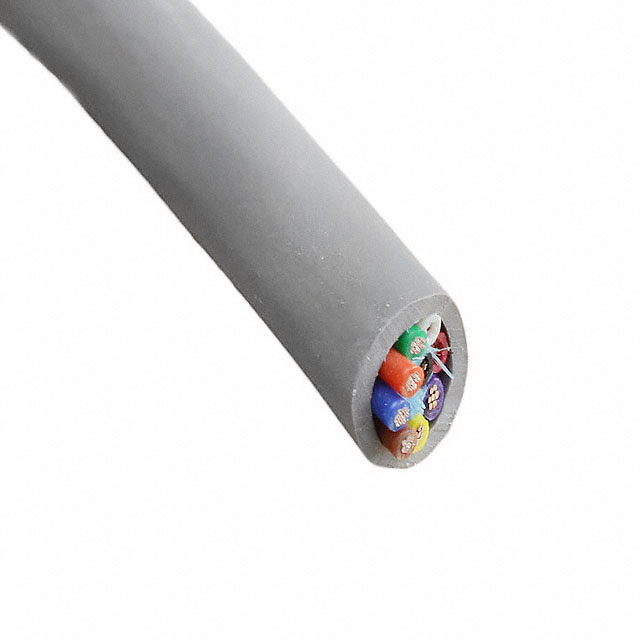

CABLE 9COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 9COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	1896/9C SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.301 in
Jacket (Insulation) Diameter [diameter]	7.65 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.023 in
Jacket (Insulation) Thickness	0.584 mm
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

CABLE 9COND 20AWG SLATE 100'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Voltage	Jacket (Insulation) Material	Wire Gauge	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Length [x]	Length [x]	Number of Conductors
ALPHA WIRE 1896/9C SL005	0.301 in	7.65 mm	Communication, Control	300 V	Poly-Vinyl Chloride (PVC)	20 AWG	Poly-Vinyl Chloride (PVC)	0.023 in	0.584 mm	Copper, Tinned	-20 C	80 C	Multi-Conductor	28	7	Slate	30.5 m	100 ft	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 217.48

General part information

9 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
