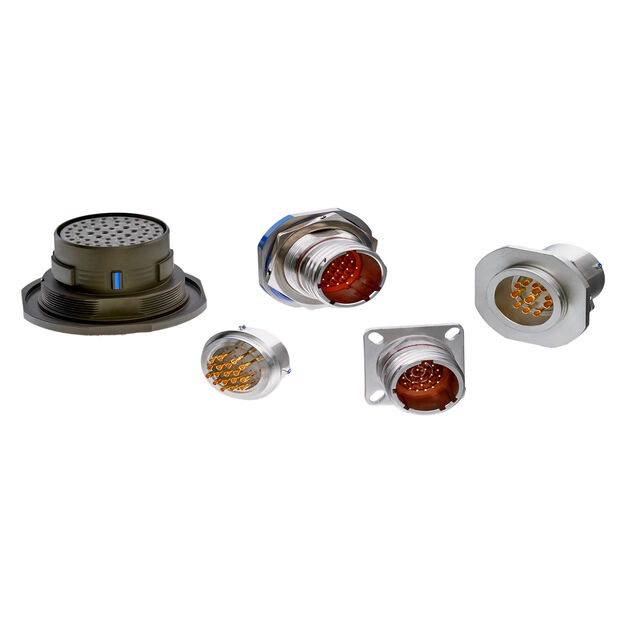

DL60H-10-6PN
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT MALE 6POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DL60H-10-6PN |
|---|---|
| Applications | Aviation, Marine, Military |
| Cable Opening [custom] | 14.27 mm |
| Cable Opening [custom] | 0.562 in |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Nickel Iron Alloy |
| Fastening Type | Bayonet Lock |
| Insert Material | Elastomer, Glass |
| Mounting Feature | Flange |
| Number of Positions | 6 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-83723 Series III |
| Shell Finish | Tin |
| Shell Material | Steel |
| Shell Size - Insert | 10-6 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.57 | |
| 10 | $ 95.51 | |||
Description
General part information
DL60H Series
6 Position Circular Connector Receptacle, Male Pins Solder Cup
