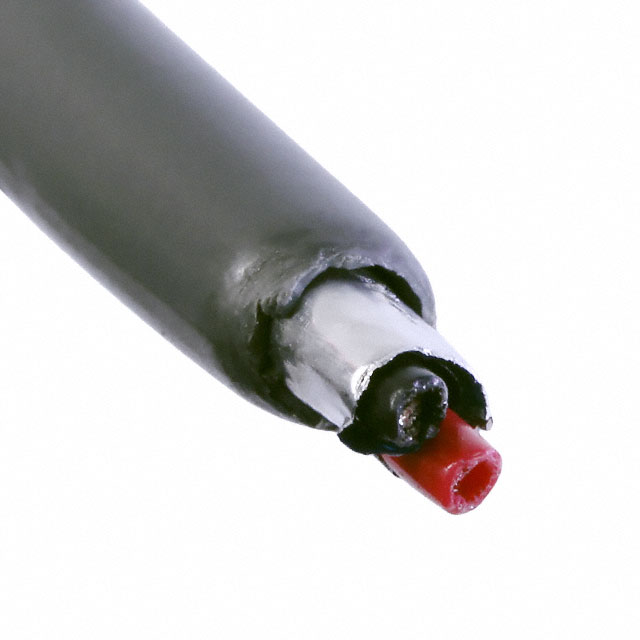

C4197A.30.10

Active

Prysmian Group

CABLE 2CON 18AWG GRAY SHLD 1000'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2CON 18AWG GRAY SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C4197A.30.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.16 mm
Jacket (Insulation) Diameter [diameter]	0.203 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	18 AWG

Part	Usage	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Shield Material	Conductor Insulation	Jacket (Insulation) Material	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Coverage	Cable Type	Number of Conductors	Wire Gauge
Prysmian Group C4197A.30.10	Communication Control	Gray	Copper Tinned	16	30 AWG	1000 ft	304.8 m	Flexfoil®	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Drain Wire	-20 C	105 ░C	300 V	5.16 mm	0.203 in	Foil	100 %	Multi-Conductor	2	18 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 18 AWG Foil 1000.0' (304.8m)
