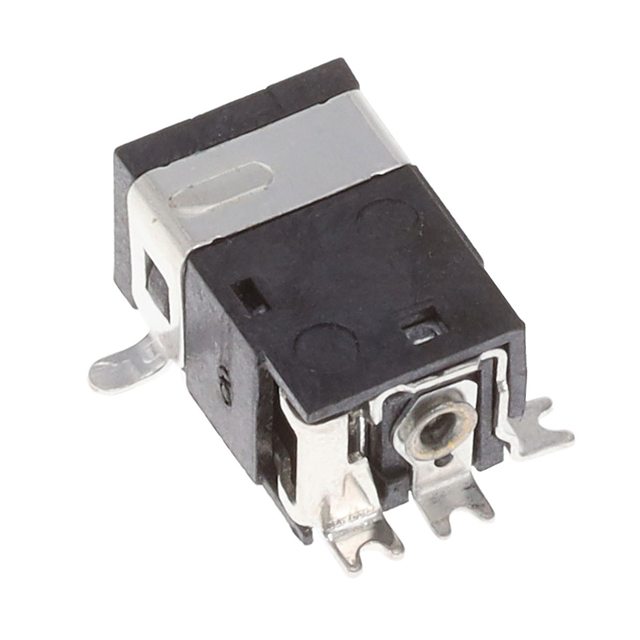

ADC-037-3-T/R
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Search across all available documentation for this part.
ADC-037-3-T/R
ActiveAdam Tech
DC POWER JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADC-037-3-T/R |
|---|---|
| Actual Diameter [diameter] | 0.146 ", 0.039 in |
| Actual Diameter [diameter] | 1 mm, 3.7 mm |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Silver |
| Current Rating (Amps) | 1 A |
| Features | Solder Retention, Board Guide |
| Gender | Male |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter [custom] | 1 mm |
| Industry Recognized Mating Diameter [custom] | 0.039 " |
| Industry Recognized Mating Diameter [custom] | 0.138 in |
| Industry Recognized Mating Diameter [custom] | 3.5 mm |
| Insulation Color | Black |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.70 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 1.70 | ||
| 10 | $ 1.29 | |||
| 25 | $ 1.16 | |||
| 50 | $ 1.08 | |||
| Tape & Reel (TR) | 600 | $ 0.82 | ||
| 1200 | $ 0.76 | |||
Description
General part information
ADC-037 Series
Power Barrel Connector Jack 1.00mm ID (0.039"), 3.50mm OD (0.138") Surface Mount, Right Angle
