M80-4101042

Active

Harwin Inc.

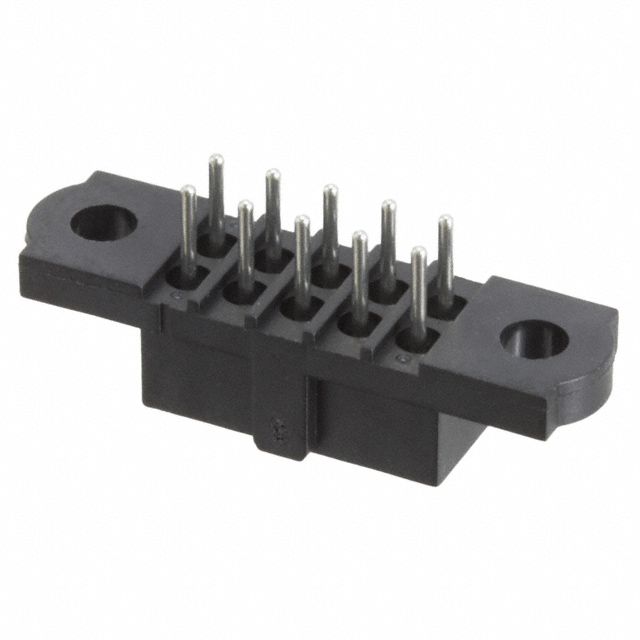

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80-0110001 +2

M80-4101042

Active

Harwin Inc.

CONN RCPT 10POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsM80-001 M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-4101042

Applications	Automotive, Military, General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	137.8 Áin
Contact Finish Thickness - Post	3.5 Ám
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Features	Mating Flange, Polarizing Key
Insulation Color	Black
Insulation Height	0.205 in
Insulation Height	5.2 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 7.55 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-410 Series

Part	Number of Rows	Contact Finish - Mating	Contact Type	Insulation Material	Number of Positions	Mounting Type	Features	Termination	Insulation Height	Insulation Height	Style	Mated Stacking Heights	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating	Row Spacing - Mating	Applications	Connector Type	Contact Finish - Post	Insulation Color	Voltage Rating	Material Flammability Rating	Number of Positions Loaded
Harwin Inc. M80-4105042	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	50	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4104242	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	42	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4102001	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	20	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm			0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin-Lead	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4103442	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	34	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4101005	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	10	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	10 çin	0.25 çm	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Gold	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4100642	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	6	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4100601	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	6	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin-Lead	Black	120 VDC	UL94 V-0	All
Harwin Inc. M80-4101042	2	Gold	Female Socket	Polyphenylene Sulfide (PPS) Glass Filled	10	Through Hole	Mating Flange Polarizing Key	Solder	0.205 in	5.2 mm	Board to Board Cable	7.3 mm 7.55 mm	12 µin	0.3 µm	0.118 in	3 mm	-55 °C	125 °C	Beryllium Copper	0.079 in	2 mm	Circular	137.8 Áin	3.5 Ám	0.079 in	2 mm	Automotive General Purpose Military	Receptacle	Tin	Black	120 VDC	UL94 V-0	All

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.61
		13	$ 5.98
		104	$ 5.23
		507	$ 4.41
		1001	$ 3.86

Description

General part information

M80-410 Series

10 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

M80-001

M80-0110001

Datasheet

M80, M83 Series Spec Sheet

Datasheet
