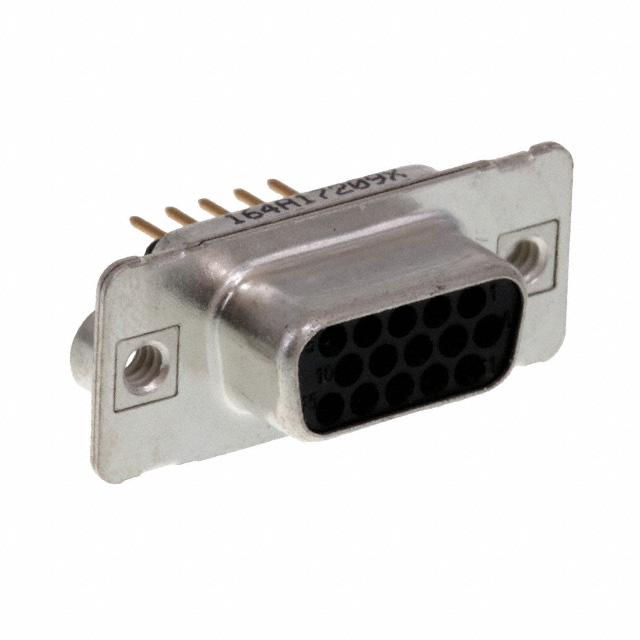

164A17209X

Active

Amphenol CONEC

CONN D-SUB HD RCPT 15P VERT SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN D-SUB HD RCPT 15P VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	164A17209X

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	60 VDC

Part	Material Flammability Rating	Contact Finish	Connector Type	Contact Type	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Material	Current Rating (Amps)	Flange Feature	Voltage Rating	Mounting Type	Number of Positions	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol CONEC 164A17219X	UL94 V-0	Gold	Receptacle Female Sockets	Signal	D-Sub High Density	Solder	8 çin	0.203 çm	2	(DA A) High Density	Black	3	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3 A	4-40 Board Side	60 VDC	Through Hole	26
Amphenol CONEC 164A17269X	UL94 V-0	Gold	Receptacle Female Sockets	Signal	D-Sub High Density	Solder			2	(DA A) High Density	Black	3	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3 A	Board Side (M3)	60 VDC	Through Hole	26	Flash
Amphenol CONEC 164A17249X	UL94 V-0	Gold	Receptacle Female Sockets	Signal	D-Sub High Density	Solder	8 çin	0.203 çm			Black		-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3 A	4-40 Board Side	60 VDC	Through Hole	78
Amphenol CONEC 164A17209X	UL94 V-0	Gold	Receptacle Female Sockets	Signal	D-Sub High Density	Solder	8 çin	0.203 çm			Black	3	-55 °C	125 °C	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	3 A	4-40 Board Side	60 VDC	Through Hole	15		DE E	1	High Density

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
