XAUY20A

Active

SunLED

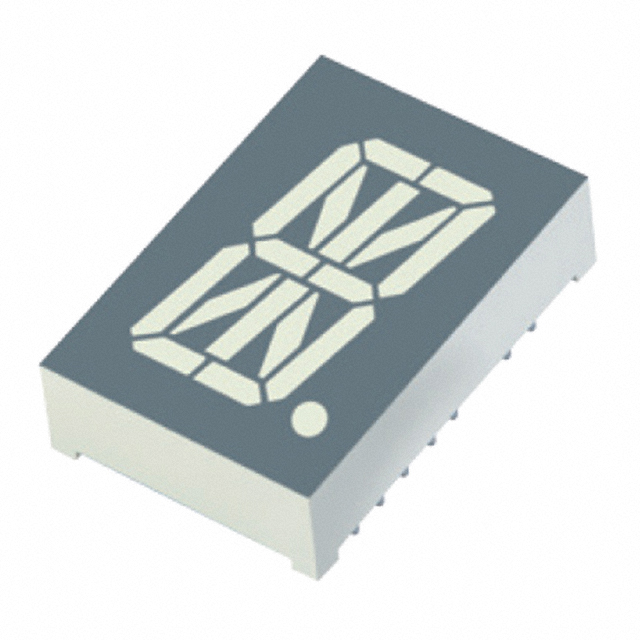

DISPLAY 16SEG 0.8" SGL YLW 18DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XAUY20A

Active

SunLED

DISPLAY 16SEG 0.8" SGL YLW 18DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XAUY20A	XAUY20 Series

Color	Yellow	Yellow
Common Pin	Common Anode	Common Cathode, Common Anode
Current - Test	10 mA	10 mA
Digit/Alpha Size	20.32 mm	20.32 mm
Digit/Alpha Size	0.8 in	0.8 in
Display Type	16-Segment, Alphanumeric	16-Segment, Alphanumeric
Millicandela Rating	2 mcd	2 mcd
Number of Characters [custom]	1	1
Package / Case	15.24 mm	15.24 mm
Package / Case	0.6 in	0.6 in
Package / Case	18-DIP	18-DIP
Power Dissipation (Max) [Max]	75 mw	75 mw
Size / Dimension [x]	27.7 mm	27.7 mm
Size / Dimension [x]	1.091 in	1.091 in
Size / Dimension [y]	20 mm	20 mm
Size / Dimension [y]	0.787 in	0.787 in
Size / Dimension [z]	0.335 "	0.335 "
Size / Dimension [z]	8.5 mm	8.5 mm
Voltage - Forward (Vf) (Typ)	1.95 V	1.95 V
Wavelength - Peak	590 nm	590 nm

XAUY20 Series

DISPLAY 16SEG 0.8" SGL YLW 18DIP

Part	Power Dissipation (Max) [Max]	Display Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Test	Number of Characters [custom]	Package / Case	Package / Case	Package / Case	Millicandela Rating	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Color	Digit/Alpha Size	Digit/Alpha Size	Common Pin
SunLED XAUY20C	75 mw	16-Segment, Alphanumeric	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	10 mA	1	15.24 mm	0.6 in	18-DIP	2 mcd	590 nm	1.95 V	Yellow	20.32 mm	0.8 in	Common Cathode
SunLED XAUY20A	75 mw	16-Segment, Alphanumeric	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	10 mA	1	15.24 mm	0.6 in	18-DIP	2 mcd	590 nm	1.95 V	Yellow	20.32 mm	0.8 in	Common Anode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	180	$ 1.85

Description

General part information

XAUY20 Series

Display Modules - LED Character and Numeric Yellow 16-Segment, Alphanumeric 1 Character Common Anode 1.95V 10mA 1.091" H x 0.787" W x 0.335" D (27.70mm x 20.00mm x 8.50mm) 18-DIP (0.600", 15.24mm)
