R124426123W

Active

Radiall USA, Inc.

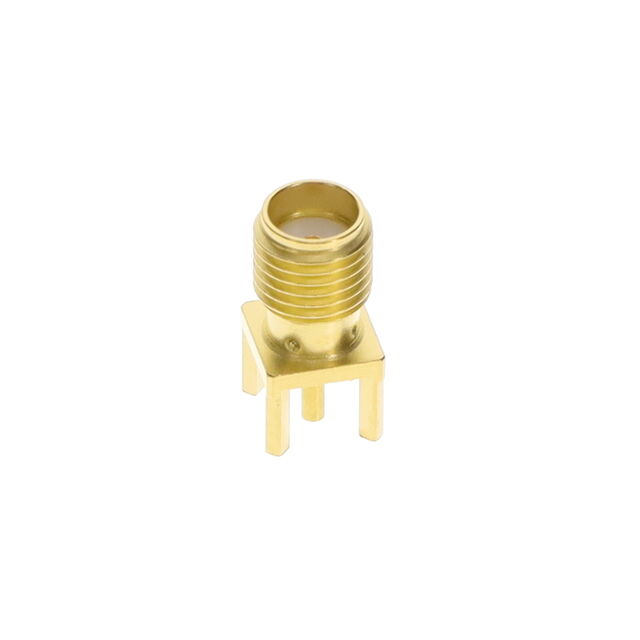

SMA / STRAIGHT JACK RECEPTACLE F

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R124426123W

Active

Radiall USA, Inc.

SMA / STRAIGHT JACK RECEPTACLE F

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R124426123W

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

R12442 Series

Part	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Dielectric Material	Contact Termination	Shield Termination	Connector Style	Mounting Type	Number of Ports	Housing Color	Body Material	Impedance	Voltage Rating	Center Contact Material	Frequency - Max [Max]	Body Finish
Radiall USA, Inc. R124422001W	Female Socket Receptacle	85 °C	-40 °C	Gold	Polyetheretherketone (PEEK)	Solder	Solder	SMA	Board Edge Cutout Surface Mount	1	Gold Silver	Brass	50 Ohms	300 VDC	Beryllium Copper	3 GHz
Radiall USA, Inc. R124423223W	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Board Edge End Launch	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124427000	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Surface Mount	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124427000W	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Surface Mount	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124426123	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Through Hole	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124426120W	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Through Hole	1	Silver	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	White Bronze
Radiall USA, Inc. R124427800	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Surface Mount	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124426123W	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Through Hole	1	Gold	Brass	50 Ohms	335 V	Beryllium Copper	18 GHz	Gold
Radiall USA, Inc. R124423223	Female Socket Jack	165 °C	-65 ░C	Gold	Polytetrafluoroethylene (PTFE)	Solder	Solder	SMA	Board Edge End Launch	1	Gold	Brass	50 Ohms	500 V	Beryllium Copper	18 GHz	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.41
		10	$ 15.96
		25	$ 15.12
		50	$ 14.90
		100	$ 13.15
		250	$ 12.27
		500	$ 12.01

Description

General part information

R12442 Series

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
