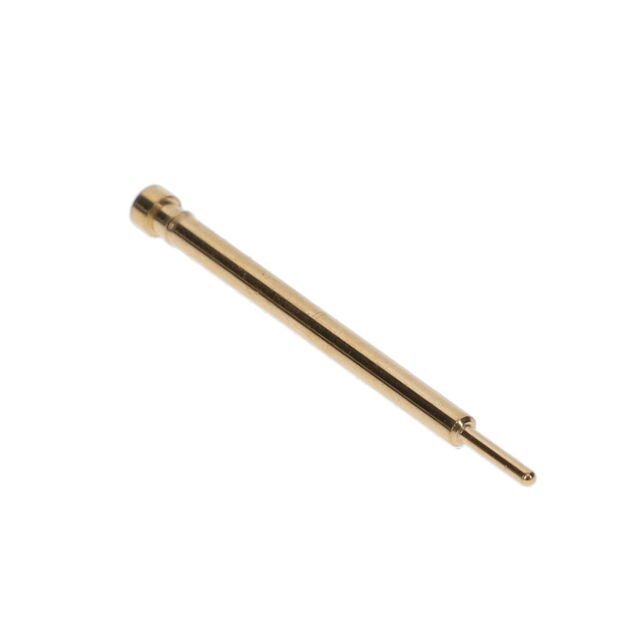

7462-0-15-15-11-27-04-0
ActiveMill-Max Manufacturing Corp.
RECEPTACLE WITH A STANDARD TAIL
Deep-Dive with AI
Search across all available documentation for this part.
7462-0-15-15-11-27-04-0
ActiveMill-Max Manufacturing Corp.
RECEPTACLE WITH A STANDARD TAIL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7462-0-15-15-11-27-04-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.51 mm |
| Accepts Pin Diameter [Max] [diameter] | 0.02 " |
| Accepts Pin Diameter [Min] [diameter] | 0.015 " |
| Accepts Pin Diameter [Min] [diameter] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.4 mm |
| Flange Diameter [diameter] | 0.055 in |
| Length - Overall [x] | 17.78 mm |
| Length - Overall [x] | 0.7 in |
| Mounting Hole Diameter [diameter] | 0.042 in |
| Mounting Hole Diameter [diameter] | 1.07 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.79 mm |
| Pin Hole Diameter [diameter] | 0.031 in |
| Socket Depth | 5.59 mm |
| Socket Depth | 0.22 in |
| Tail Diameter [diameter] | 0.02 in |
| Tail Diameter [diameter] | 0.51 mm |
| Tail Type | Standard Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.73 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.62 | |||
| 500 | $ 0.56 | |||
| 1000 | $ 0.50 | |||
| 3000 | $ 0.45 | |||
Description
General part information
7462-0 Series
Pin Receptacle Connector 0.015" ~ 0.020" (0.38mm ~ 0.51mm) Standard Tail Solder
