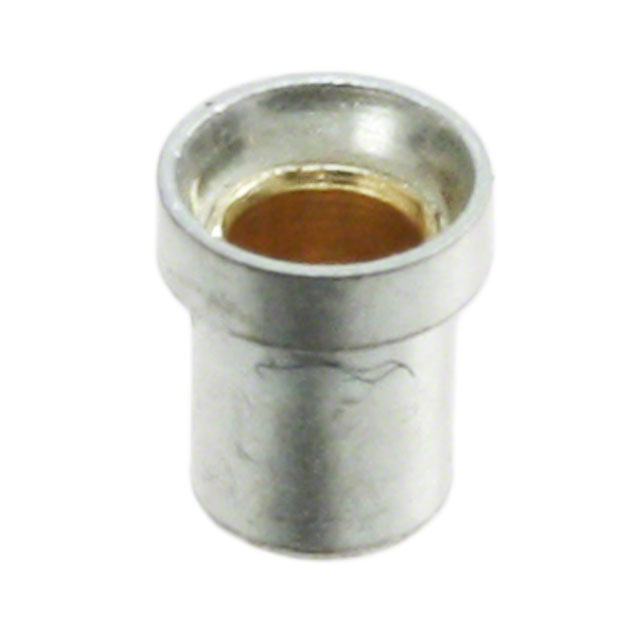

0375-0-67-80-02-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.050 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
0375-0-67-80-02-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .040-.050 SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0375-0-67-80-02-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.05 in |
| Accepts Pin Diameter [Max] | 1.27 mm |
| Accepts Pin Diameter [Min] | 1.02 mm |
| Accepts Pin Diameter [Min] | 0.04 " |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Features | Knockout Bottom (Organic Fiber Plug®) |
| Flange Diameter [diameter] | 0.1 in |
| Flange Diameter [diameter] | 2.54 mm |
| Length - Overall [x] | 0.12 in |
| Length - Overall [x] | 3.05 mm |
| Mounting Hole Diameter [diameter] | 0.087 in |
| Mounting Hole Diameter [diameter] | 2.21 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 1.73 mm |
| Pin Hole Diameter [diameter] | 0.068 in |
| Socket Depth | 3.05 mm |
| Socket Depth | 0.12 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.18 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.65 | |||
| Digi-Reel® | 1 | $ 1.18 | ||
| 10 | $ 1.00 | |||
| 25 | $ 0.96 | |||
| 50 | $ 0.94 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.81 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.65 | |||
| Tape & Reel (TR) | 4500 | $ 0.59 | ||
| 9000 | $ 0.54 | |||
| 13500 | $ 0.53 | |||
Description
General part information
0375-0 Series
Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Solder
Documents
Technical documentation and resources
No documents available
