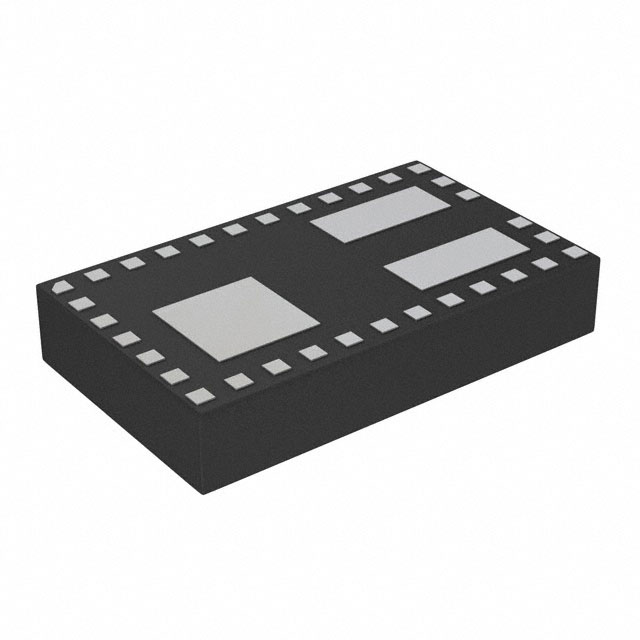

MAXM17574ALC#T
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-15V
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17574ALC#T
ActiveAnalog Devices Inc./Maxim Integrated
DC DC CONVERTER 0.9-15V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17574ALC#T | MAXM17574 Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Board Type | - | Fully Populated |
| Current - Output | - | 3 A |
| Current - Output (Max) [Max] | 3 A | 3 A |
| Features | OTP, UVLO, OCP | OTP, UVLO, OCP |
| Frequency - Switching | - | 650 kHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 33-PowerBLGA Module | 33-PowerBLGA Module |
| Size / Dimension [x] | 15 mm | 15 mm |
| Size / Dimension [x] | 0.59 in | 0.59 in |
| Size / Dimension [y] | 9 mm | 9 mm |
| Size / Dimension [y] | 0.35 " | 0.35 " |
| Size / Dimension [z] | 0.11 in | 0.11 in |
| Size / Dimension [z] | 2.8 mm | 2.8 mm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 33-LGA (15x9) | 33-LGA (15x9) |
| Type | Non-Isolated PoL Module | Non-Isolated PoL Module |
| Utilized IC / Part | - | MAXM17574 |
| Voltage - Input | - | 10 V |
| Voltage - Input | - | 60 V |
| Voltage - Input (Max) [Max] | 60 V | 60 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 5 V |
| Voltage - Output 1 [Max] | 15 V | 15 V |
| Voltage - Output 1 [Min] | 0.9 V | 0.9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXM17574 Series
DC DC CONVERTER 0.9-15V
| Part | Voltage - Input (Min) [Min] | Package / Case | Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Outputs | Current - Output (Max) [Max] | Features | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Mounting Type | Applications | Voltage - Input (Max) [Max] | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Switching | Outputs and Type | Outputs and Type | Board Type | Voltage - Input [Min] | Voltage - Input [Max] | Supplied Contents | Main Purpose | Current - Output | Utilized IC / Part | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17574ALC# | 4.5 V | 33-PowerBLGA Module | Non-Isolated PoL Module | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 1 | 3 A | OCP, OTP, UVLO | 0.9 V | 15 V | Surface Mount | ITE (Commercial) | 60 V | 33-LGA (15x9) | 125 °C | -40 °C | |||||||||||
Analog Devices Inc./Maxim Integrated MAXM17574EVKIT# | 650 kHz | Non-Isolated | 1 | Fully Populated | 10 V | 60 V | Board(s) | DC/DC, Step Down | 3 A | MAXM17574 | 5 V | ||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17574ALC#T | 4.5 V | 33-PowerBLGA Module | Non-Isolated PoL Module | 15 mm | 0.11 in | 0.59 in | 9 mm | 2.8 mm | 0.35 " | 1 | 3 A | OCP, OTP, UVLO | 0.9 V | 15 V | Surface Mount | ITE (Commercial) | 60 V | 33-LGA (15x9) | 125 °C | -40 °C |
Description
General part information
MAXM17574 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.9 ~ 15V 3A 4.5V - 60V Input
