SWITCH TACTILE SPST-NO 0.1A 35V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 35V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

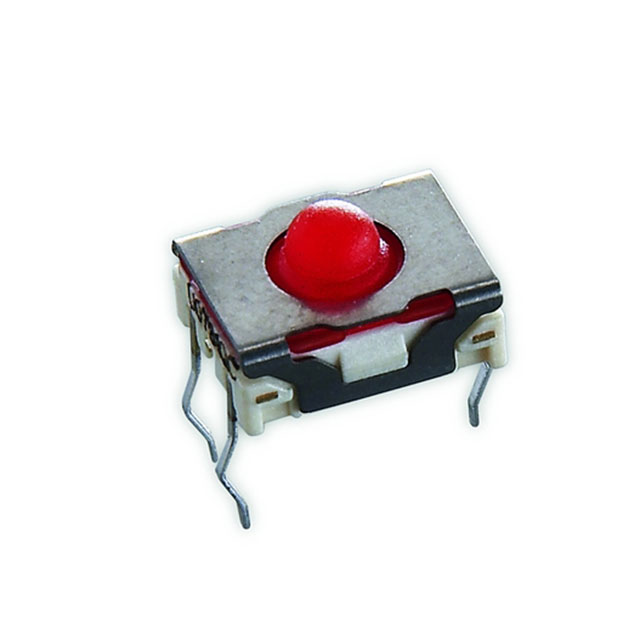

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1.14.002.106/0000	1.14.002 Series

Actuator Height off PCB, Vertical	3.8 mm	3.8 mm
Actuator Height off PCB, Vertical	-	3.85 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	35 VAC/DC, 0.1 A	0.1 - 35 VAC/DC
Features	Tactile Feedback	Tactile Feedback
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	1000000 Cycles	250000 - 1000000 Cycles
Mounting Type	Through Hole	Surface Mount, Through Hole
Operating Force	300 gf	153 - 550 gf
Operating Temperature [Max]	85 °C	85 - 90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	6.4 mm	6.4 mm
Outline [y]	5.1 mm	5.1 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.7 mm	0.5 - 0.85 mm
Termination Style	PC Pin	J Lead, PC Pin

SWITCH TACTILE SPST-NO 0.1A 35V

Part	Operating Force	Actuator Type	Circuit	Mechanical Life	Contact Rating @ Voltage	Actuator Orientation	Outline [x]	Outline [y]	Switch Function	Mounting Type	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Illumination	Actuator Height off PCB, Vertical [z]	Features	Actuator Height off PCB, Vertical
RAFI USA 1.14.002.201/0000	153 gf	Standard	SPST-NO	1000000 Cycles	0.1 A, 35 VAC/DC	Top Actuated	6.4 mm	5.1 mm	Off-Mom	Surface Mount	0.5 mm	90 °C	-40 °C	J Lead	Non-Illuminated	3.85 mm
RAFI USA 1.14.002.111/0000	550 gf	Standard	SPST-NO	1000000 Cycles	0.1 A, 35 VAC/DC	Top Actuated	6.4 mm	5.1 mm	Off-Mom	Surface Mount		85 °C	-40 °C	J Lead	Non-Illuminated	3.85 mm	Tactile Feedback
RAFI USA 1.14.002.106/0000	300 gf	Standard	SPST-NO	1000000 Cycles	0.1 A, 35 VAC/DC	Top Actuated	6.4 mm	5.1 mm	Off-Mom	Through Hole	0.7 mm	85 °C	-40 °C	PC Pin	Non-Illuminated		Tactile Feedback	3.8 mm
RAFI USA 1.14.002.301/0000	357 gf	Standard	SPST-NO	250000 Cycles	0.1 A, 35 VAC/DC	Top Actuated	6.4 mm	5.1 mm	Off-Mom	Through Hole	0.85 mm	90 °C	-40 °C	PC Pin	Non-Illuminated	3.85 mm
