General part information

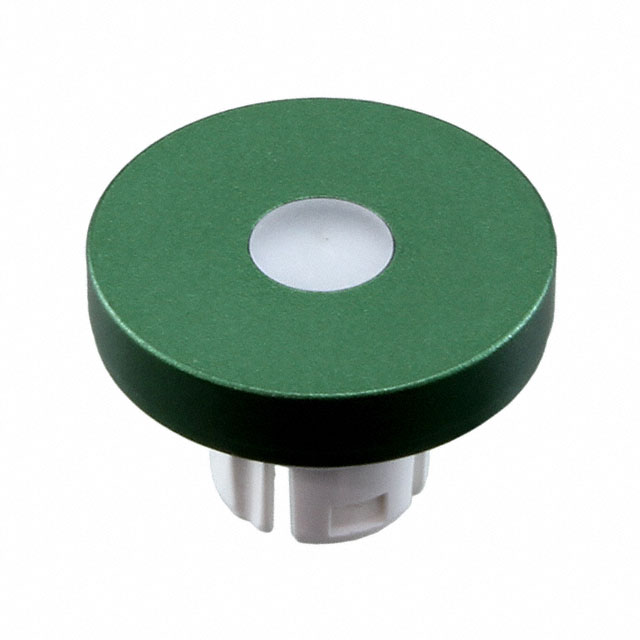

Industrial Panel Mount Indicators / Switch Indicators Aluminum Green Lens with Window
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 61-9841.5A | 61 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | EAO, 61 | EAO, 61 |
| Accessory Type | - | Bezel |
| Actuator Type | - | Keylock |
| Circuit | - | DPST-NC |
| Color | Green | Green, Red |
| Contact Rating @ Voltage | - | 0.3 - 50 A |
| For Use With/Related Products | - | 61 Series |
| Illumination | - | Non-Illuminated |
| Panel Cutout Dimensions | - | 16.2 mm |
| Requires | - | Contact Block(s), Switch Body |
| Shape | Round | Square, Round |
| Termination Style | - | 0.11 in |
| Termination Style | - | Quick Connect, Solder |
| Termination Style | - | 2.8 mm |
| Type | - | Maintained, Momentary |
Industrial Panel Mount Indicators / Switch Indicators Aluminum Green Lens with Window
| Part | Requires | Type | Actuator Type | (Select First, Then Apply Filters) Compatible Series | Panel Cutout Dimensions | Illumination | Color | Shape | Circuit | Termination Style | Termination Style | Termination Style | Contact Rating @ Voltage | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 61-2603.0/D | Contact Block(s) | Maintained | Keylock | 61, EAO | 16.2 mm | Non-Illuminated | |||||||||
EAO 61-9321.5 | 61, EAO | Green | Square | ||||||||||||
EAO 61-9351.3 | 61, EAO | Square | |||||||||||||
EAO 61-8755.37 | Switch Body | 61, EAO | DPST-NC | 0.11 in | Quick Connect, Solder | 2.8 mm | 0.3 A, 50 VAC/DC | ||||||||
EAO 61-2801.0/D | Contact Block(s) | Maintained, Momentary | Keylock | 61, EAO | 16.2 mm | Non-Illuminated | |||||||||
EAO 61-9841.5A | 61, EAO | Green | Round | ||||||||||||
EAO 61-9936.0 | 61 Series | Bezel | |||||||||||||
EAO 61-9311.2 | 61, EAO | Red | Round |
