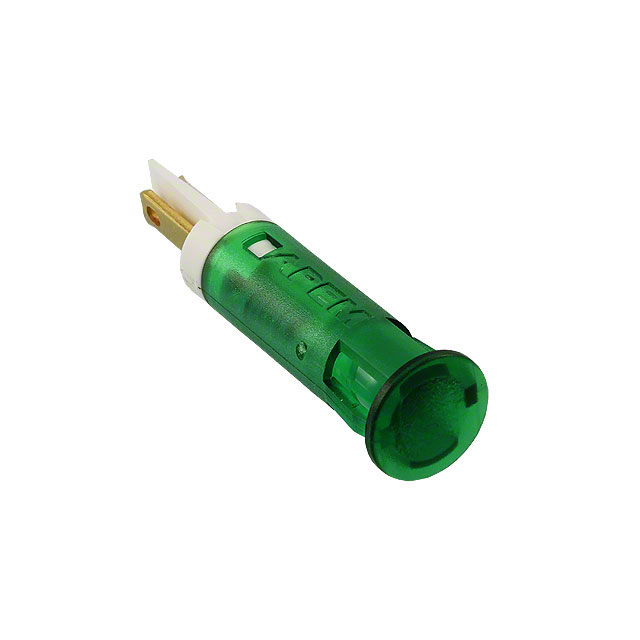

QS81XXHG110
ActiveAPEM
INDICATOR 8MM FIXED HI GRN 110V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QS81XXHG110
ActiveAPEM
INDICATOR 8MM FIXED HI GRN 110V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QS81XXHG110 |
|---|---|
| Current | 6 mA |
| Lamp Color | Green |
| Lens Color | Green |
| Lens Size [diameter] | 10 mm |
| Lens Transparency | Diffused |
| Millicandela Rating | 1200 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Solder Lug |
| Type | LED |
| Viewing Angle | 45 ° |
| Voltage | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.25 | |
| 10 | $ 9.50 | |||
| 100 | $ 7.89 | |||
| 500 | $ 7.19 | |||
| 1000 | $ 6.96 | |||
Description
General part information
QS81XXHG Series
LED Panel Indicator Green Diffused 45° 110V 6mA Solder Lug
