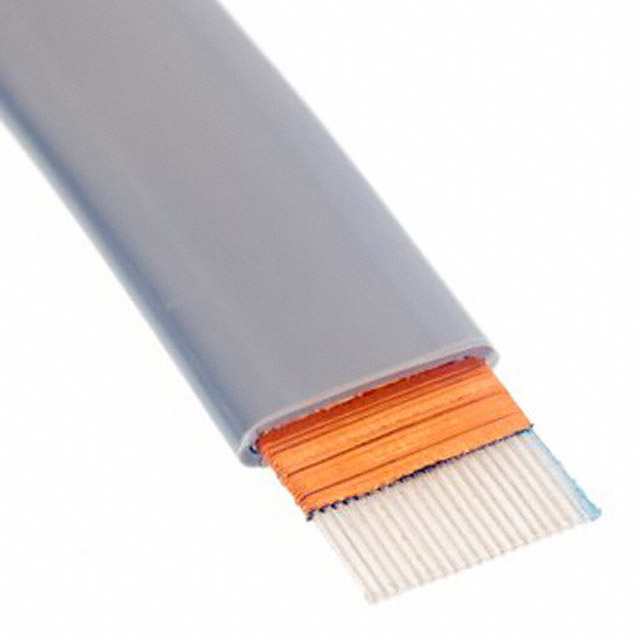

90211/68 100

Active

3M (TC)

CBL RIBN 68COND 0.025 GRAY 100'

Search across all available documentation for this part.

Active

3M (TC)

CBL RIBN 68COND 0.025 GRAY 100'

Technical Specifications

Parameters and characteristics for this part

Specification	90211/68 100

Cable Type	Flat Cable, Flat Jacket
Conductor Material	Copper, Tinned
Conductor Strand	Solid
First Conductor Mark	Blue
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket Color	Gray
Length [x]	100 ft
Length [x]	30.48 m
Number of Conductors	68
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.64 mm
Pitch [x]	0.025 in
Ratings	UL E42769
Ribbon Thickness	0.1 in
Ribbon Thickness	2.54 mm
Ribbon Width	1.82 in
Ribbon Width	46.22 mm
Shielding	Shielded
Voltage	150 V
Wire Gauge	30 AWG

Part	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Material	Ratings	Conductor Strand	Shielding	Ribbon Width	Ribbon Width	Wire Gauge	Jacket Color	Insulation Resistance	Conductor Material	Ribbon Thickness	Ribbon Thickness	Length [x]	Length [x]	First Conductor Mark	Pitch [x]	Pitch [x]	Number of Conductors	Voltage
3M (TC) 90211-HV6-NA
3M (TC) 90210-HV6-NA
3M (TC) 90214-HZ4-NA
3M (TC) 90211/68 100	-20 C	105 ░C	Flat Cable Flat Jacket	Thermoplastic Elastomer (TPE)	UL E42769	Solid	Shielded	1.82 in	46.22 mm	30 AWG	Gray	10 GOhm	Copper Tinned	0.1 in	2.54 mm	100 ft	30.48 m	Blue	0.64 mm	0.025 in	68	150 V
3M (TC) 90213-HZ4-NA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 2864.22

General part information

Flat Ribbon Cable Gray 68 Conductors 0.025" (0.64mm) Flat Cable, Flat Jacket 100.0' (30.48m)
