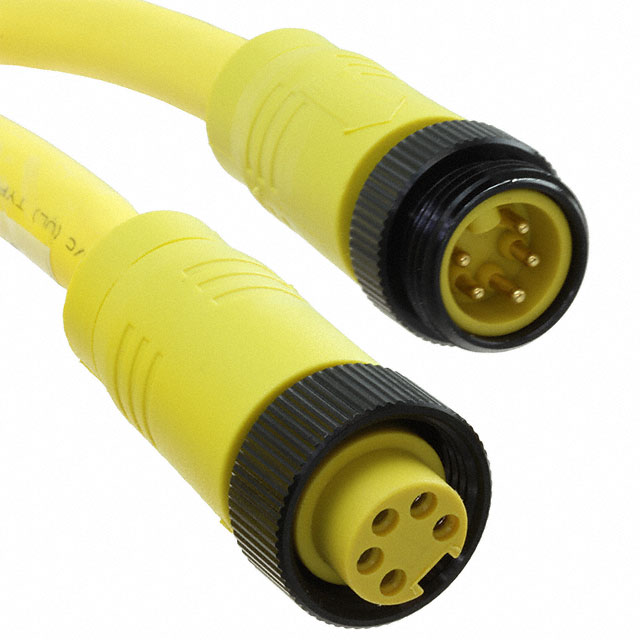

MN57A4AC01M100
ActiveAmphenol Sine Systems Corp
CBL CIRC 5POS MALE TO FEM 32.8'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MN57A4AC01M100 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation [custom] | Keyed |
| 1st Connector Shell Size - Insert | 0.875 in |
| 1st Connector Shell Size - Insert | M22 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | All |
| 2nd Connector Shell Size - Insert | 0.875 " |
| 2nd Connector Shell Size - Insert | M22 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Yellow |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 158.29 | |
| 10 | $ 145.25 | |||
| 30 | $ 139.67 | |||
| 50 | $ 135.01 | |||
Description
General part information
MN57 Series
Cable Assembly 32.8' (10.00m)
