CDLB-1-2702-9908-I
ActiveVisual Communications Company - VCC

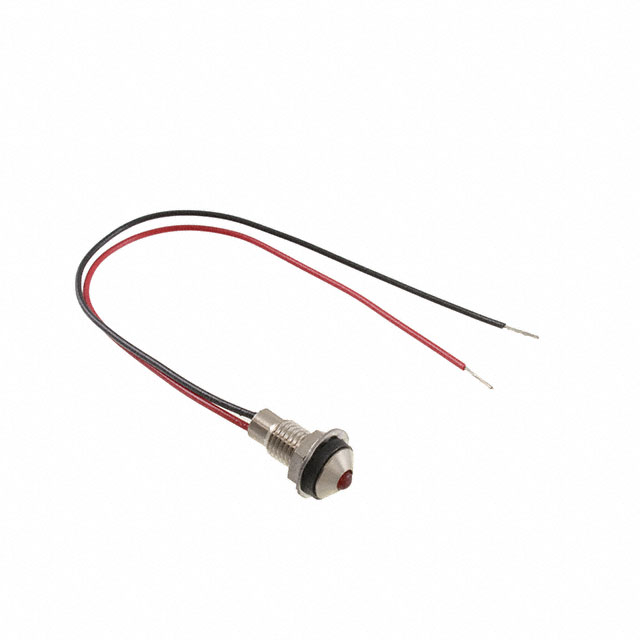

LONG BODY PMI RND .230" LED 12V
Deep-Dive with AI
Search across all available documentation for this part.
CDLB-1-2702-9908-I
ActiveVisual Communications Company - VCC
LONG BODY PMI RND .230" LED 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CDLB-1-2702-9908-I |
|---|---|
| Ingress Protection | IP67 |
| Lens Color | Red |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 299 mcd |
| Panel Cutout Dimensions [diameter] | 0.24 in |
| Panel Cutout Dimensions [diameter] | 6 mm |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 12 V |
| Wavelength - Peak | 660 nm |
CDLB-1-2702 Series
| Part | Panel Cutout Shape | Ingress Protection | Lens Color | Lens Style | Voltage | Panel Cutout Dimensions [diameter] | Panel Cutout Dimensions [diameter] | Ratings | Type | Viewing Angle | Wavelength - Peak | Millicandela Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Visual Communications Company - VCC | Round | IP67 | Red | Round with Domed Top | 120 V | 0.24 in | 6 mm | AC | LED | 60 ° | 660 nm | 299 mcd |
Visual Communications Company - VCC | Round | IP67 | Red | Round with Domed Top | 28 V | 0.24 in | 6 mm | DC | LED | 60 ° | 660 nm | 299 mcd |
Visual Communications Company - VCC | Round | IP67 | Red | Round with Domed Top | 12 V | 0.24 in | 6 mm | DC | LED | 60 ° | 660 nm | 299 mcd |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.47 | |
| 10 | $ 9.25 | |||
| 100 | $ 7.59 | |||
| 500 | $ 6.93 | |||
| 1000 | $ 6.78 | |||
Description
General part information
CDLB-1-2702 Series
LED Panel Indicator 60° 12V 20mA Wire Leads - 6" (152.40mm)
