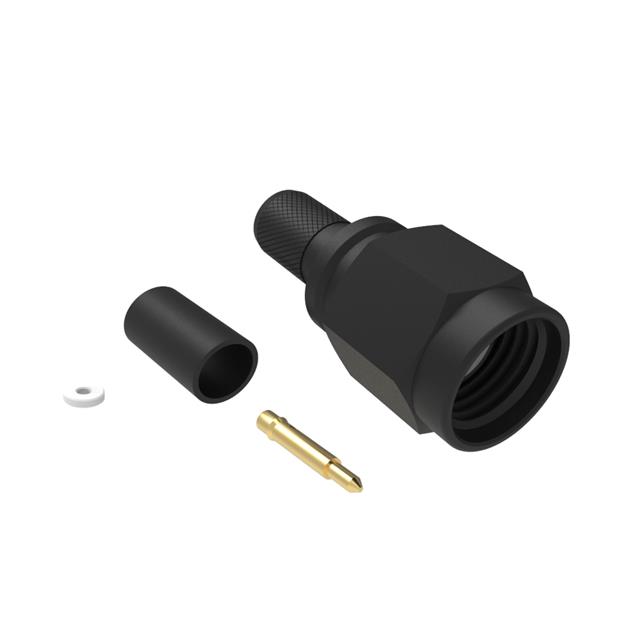

132443-BC

Active

Amphenol RF

SMA STRAIGHT CRIMP PLUG TIMES LM

Search across all available documentation for this part.

Active

Amphenol RF

SMA STRAIGHT CRIMP PLUG TIMES LM

Technical Specifications

Parameters and characteristics for this part

Specification	132443-BC

Body Finish	Chromate, Black
Body Material	Brass
Cable Group	LMR-195
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Black
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Mounting Type	Housing Color	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Voltage Rating	Connector Type	Impedance	Cable Group	Frequency - Max [Max]	Number of Ports	Dielectric Material	Contact Termination	Body Material	Center Contact Plating	Mating Cycles	Body Finish	Center Contact Material
Amphenol RF 132443-BC	Free Hanging (In-Line)	Black	Crimp	-65 ░C	165 °C	SMA	335 V	Male Pin Plug	50 Ohms	LMR-195	6000 MHz	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	Gold	500	Chromate Black	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
