89504 0021000

Active

Belden Inc.

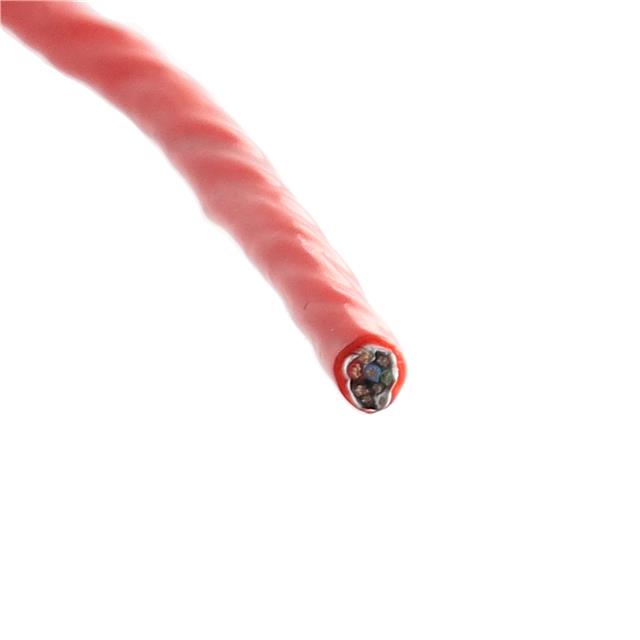

MULTI-PAIR 8COND 24AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 8COND 24AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	89504 0021000

Cable Type	Multi-Pair
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.88 mm
Jacket (Insulation) Diameter [diameter]	0.192 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Shield Coverage	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Material	Jacket (Insulation) Material	Wire Gauge	Cable Type	Number of Conductors	Features	Ratings	Shield Type	Jacket Color	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Usage	Conductor Material
Belden Inc. 89504 0021000	4.88 mm	0.192 in	300 V	100 %	Fluorinated Ethylene-Propylene (FEP)	32 AWG	7	0.356 mm	0.014 in	Aluminum	Fluorinated Ethylene-Propylene (FEP) Plenum	24 AWG	Multi-Pair	8	Drain Wire	UL Style CMP	Foil	Red	1000 ft	304.8 m	200 °C	-70 °C	Computer	Copper Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 8.66

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Red 24 AWG Foil 1000.0' (304.8m)
