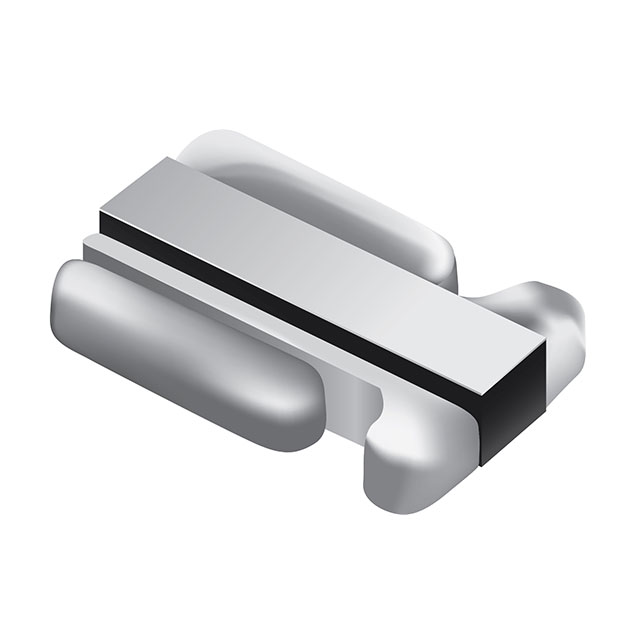

CST0612-FC-R0015E
ActiveBourns Inc.
RES 0.0015 OHM 1% 1W 0612
Deep-Dive with AI
Search across all available documentation for this part.
CST0612-FC-R0015E
ActiveBourns Inc.
RES 0.0015 OHM 1% 1W 0612
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CST0612-FC-R0015E |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 1 W |
| Ratings | AEC-Q200 |
| Resistance | 1.5 mOhms |
| Size / Dimension [x] | 0.12 in |
| Size / Dimension [x] | 3.05 mm |
| Size / Dimension [y] | 0.065 in |
| Size / Dimension [y] | 1.65 mm |
| Supplier Device Package | 0612 |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.88 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.34 | |||
| Digi-Reel® | 1 | $ 0.88 | ||
| 10 | $ 0.74 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.34 | |||
| Tape & Reel (TR) | 4000 | $ 0.33 | ||
| 8000 | $ 0.32 | |||
| 12000 | $ 0.31 | |||
| 28000 | $ 0.31 | |||
Description
General part information
CST0612 Series
1.5 mOhms ±1% 1W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense, Moisture Resistant Metal Element
