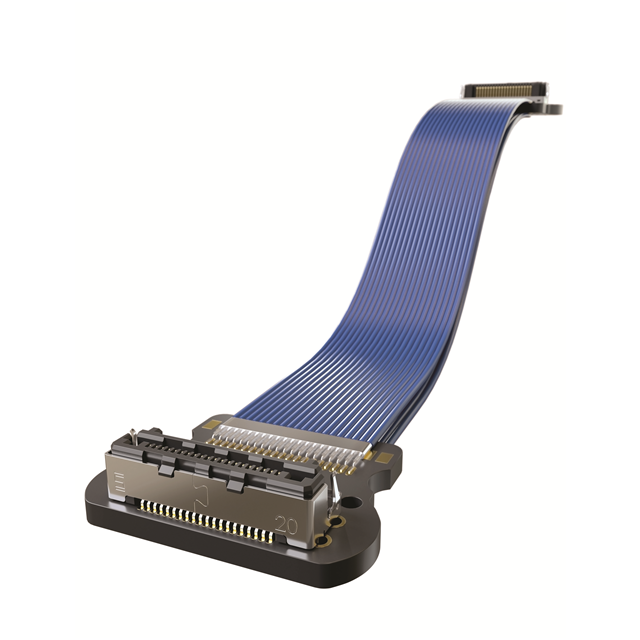

HLCD-50-12.00-TD-TH-1

Active

Samtec Inc.

CBL ASS SELF-MATE 100POS 12" HDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHLCD-20-10.00-BL-BLS-1 Datasheet

HLCD-50-12.00-TD-TH-1

Active

Samtec Inc.

CBL ASS SELF-MATE 100POS 12" HDR

Deep-Dive with AI

DocumentsHLCD-20-10.00-BL-BLS-1 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLCD-50-12.00-TD-TH-1

Cable Termination	IDC
Color	Ribbon, Blue
Connector Type	Hermaphroditic to Self Mating, Reversed, Hermaphroditic, Self Mating, Non-Gendered
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Length	1 ft
Length	304.8 mm
Number of Positions	100
Number of Rows	2
Pitch - Cable	0.01 in
Pitch - Cable	0.25 mm
Pitch - Connector	0.02 in
Pitch - Connector	0.5 mm
Shielding	Shielded

HLCD-50 Series

Part	Pitch - Cable	Pitch - Cable	Number of Positions	Connector Type	Number of Rows	Shielding	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Cable Termination	Pitch - Connector	Pitch - Connector	Color	Length	Length [x]	Length [x]
Samtec Inc. HLCD-50-06.00-TR-TR-1	0.01 in	0.25 mm	100	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	Shielded	152.4 mm	6 "	0.5 '	10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon
Samtec Inc. HLCD-50-06.00-TD-TH-2	0.01 in	0.25 mm	100	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	Shielded	152.4 mm	6 "	0.5 '	10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon
Samtec Inc. HLCD-50-02.00-TD-TH-1	0.01 in	0.25 mm	100	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	Shielded	50.8 mm	2 "		10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	0.167 '
Samtec Inc. HLCD-50-40.00-TR-TR-1	0.01 in	0.25 mm	100	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	Shielded				10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon		1.02 m	3.33 '
Samtec Inc. HLCD-50-12.00-TR-TR-2	0.01 in	0.25 mm	100	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	Shielded	304.8 mm			10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	1 ft
Samtec Inc. HLCD-50-02.00-TR-TR-1	0.01 in	0.25 mm	100	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	Shielded	50.8 mm	2 "		10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	0.167 '
Samtec Inc. HLCD-50-12.00-TD-TH-2	0.01 in	0.25 mm	100	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	Shielded	304.8 mm			10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	1 ft
Samtec Inc. HLCD-50-06.00-TD-TH-1	0.01 in	0.25 mm	100	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	Shielded	152.4 mm	6 "	0.5 '	10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon
Samtec Inc. HLCD-50-12.00-TD-TH-1	0.01 in	0.25 mm	100	Hermaphroditic Hermaphroditic to Self Mating Non-Gendered Reversed Self Mating	2	Shielded	304.8 mm			10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	1 ft
Samtec Inc. HLCD-50-12.00-TR-TR-1	0.01 in	0.25 mm	100	Self Mating Non-Gendered Hermaphroditic to Self Mating Non-Gendered Hermaphroditic	2	Shielded	304.8 mm			10 Áin	0.25 Ám	Gold	IDC	0.02 in	0.5 mm	Blue Ribbon	1 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HLCD-50 Series

100 Position Cable Assembly Rectangular Self Mating, Non-Gendered, Hermaphroditic to Self Mating, Non-Gendered, Hermaphroditic, Reversed 1.00' (304.80mm)

Documents

Technical documentation and resources

HLCD-20-10.00-BL-BLS-1

Datasheet
