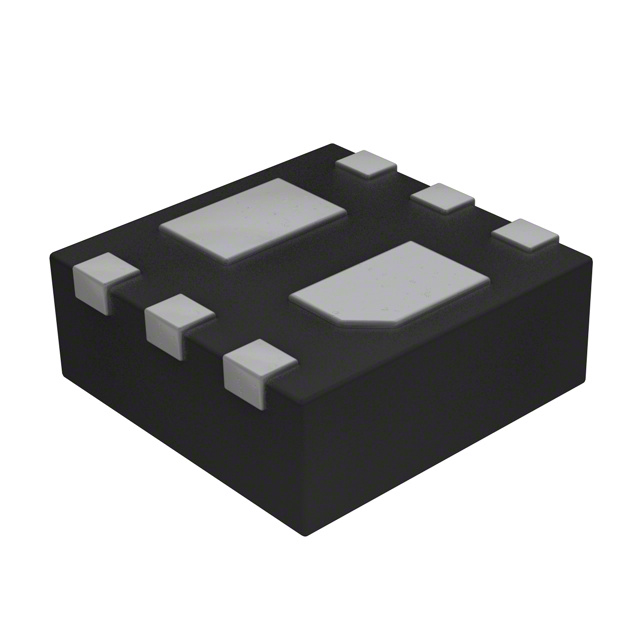

CSD15571Q2
Active20-V, N CHANNEL NEXFET™ POWER MOSFET, SINGLE SON 2 MM X 2 MM, 19.2 MOHM 6-WSON -55 TO 150
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CSD15571Q2 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 22 A |
| Drain to Source Voltage (Vdss) | 20 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs | 6.7 nC |
| Input Capacitance (Ciss) (Max) @ Vds [Max] | 419 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Power Dissipation (Max) [Max] | 2.5 W |
| Rds On (Max) @ Id, Vgs | 15 mOhm |
| Supplier Device Package | 6-SON (2x2) |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) [Max] | 20 V |
| Vgs (Max) [Min] | -20 V |
| Vgs(th) (Max) @ Id | 1.9 V |
