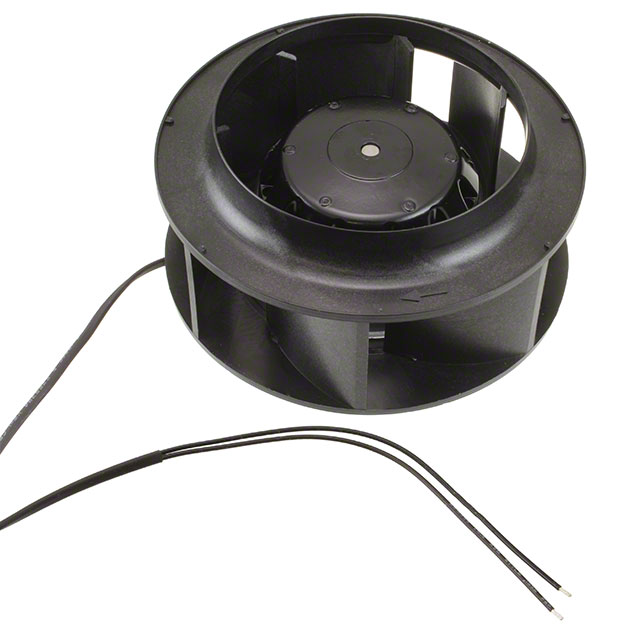

UF133(72)APA12-H1S2A

Active

Mechatronics Bearing Group

IMPELLER 133X72MM 115VAC

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

IMPELLER 133X72MM 115VAC

Technical Specifications

Parameters and characteristics for this part

Part	Termination	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Power (Watts)	RPM	Width [y]	Static Pressure	Static Pressure	Fan Type	Size / Dimension [diameter]	Approval Agency	Air Flow	Air Flow	Noise	Bearing Type	Voltage - Rated	Material - Frame	Current Rating (Amps)	Features
Mechatronics Bearing Group UF133(72)APA23-H1S2A	2 Wire Leads	Polyamide (PA6) Nylon 6 Glass Reinforced	70 °C	70 °C	-40 °C	-40 °C	589.7 g	1.3 lbs	40 W	2780 RPM	72.5 mm	0.88 in H2O	219.2 Pa	Motorized Impellers	133 mm	CE cUL TUV UL	5.26 m³/min	188 CFM	50 dB(A)	Ball	230 VAC	Aluminum	0.24 A
Mechatronics Bearing Group UF133(91)APA12-H1S2A	2 Wire Leads	Plastic	70 °C	70 °C	-40 °C	-40 °C	907.2 g	2 lbs	41 W	3200 RPM	91.5 mm	0.88 in H2O	219.2 Pa	Motorized Impellers	133 mm	CE cUL TUV UL	5.26 m³/min	188 CFM	60 dB(A)	Ball	115 VAC	Aluminum	430 mA	Thermal Overload Protector (TOP)
Mechatronics Bearing Group UF133(72)APA12-H1S2A	2 Wire Leads	Plastic	70 °C	70 °C	-40 °C	-40 °C	907.2 g	2 lbs	41 W	3200 RPM	72.5 mm	0.88 in H2O	219.2 Pa	Motorized Impellers	133 mm	CE cUL TUV UL	5.26 m³/min	188 CFM	60 dB(A)	Ball	115 VAC	Aluminum	430 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 115VAC Round - 133mm Dia Ball 188.0 CFM (5.26m³/min) 2 Wire Leads
