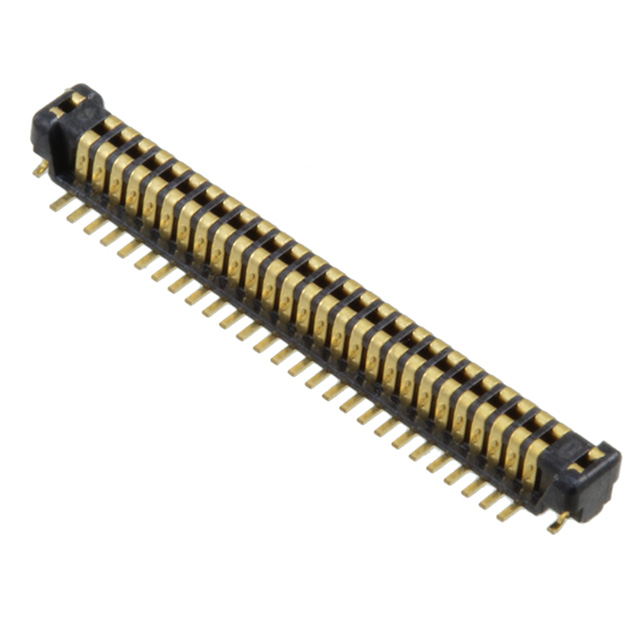

AXT454154

Active

Panasonic Electric Works

CONN HDR 54POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 54POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT454154

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention, Board Guide
Height Above Board	0.049 in
Height Above Board	1.25 mm
Mated Stacking Heights	2.5 mm, 1.5 mm
Mounting Type	Surface Mount
Number of Positions	54
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Connector Type	Contact Finish	Features	Height Above Board	Height Above Board	Number of Positions	Mated Stacking Heights
Panasonic Electric Works AXT454154	Surface Mount	2	0.016 in	0.4 mm	Header Center Strip Contacts	Gold	Board Guide Solder Retention	0.049 in	1.25 mm	54	1.5 mm 2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 9.32

General part information

54 Position Connector Header, Center Strip Contacts Surface Mount Gold
