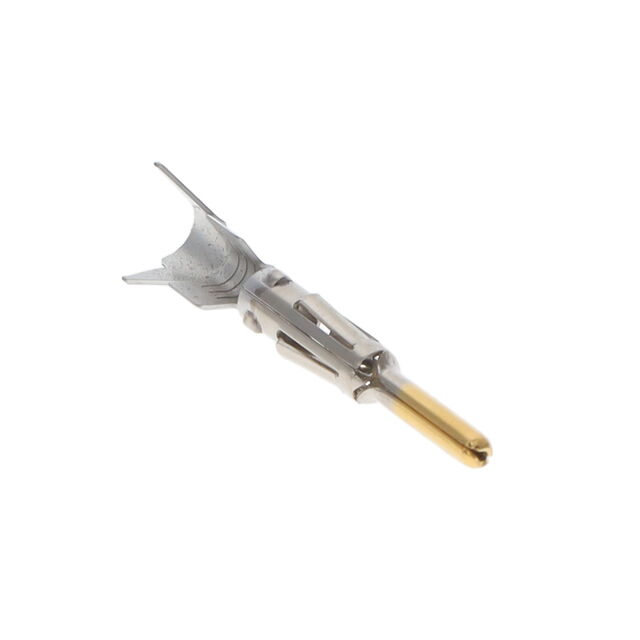

KN01P15HGP1
ActiveJAE Electronics
CONN PIN CONTACT #12 SIZE, AWG 1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KN01P15HGP1
ActiveJAE Electronics
CONN PIN CONTACT #12 SIZE, AWG 1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KN01P15HGP1 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 12 AWG |
KN01P Series
| Part | Contact Finish | Contact Termination | Pin or Socket | Type | Wire Gauge | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|
JAE Electronics | Silver | Crimp | Pin | Stamped | 10 AWG | ||
JAE Electronics | Gold | Crimp | Pin | Stamped | 16 AWG | 20 AWG | |
JAE Electronics | Gold | Crimp | Pin | Stamped | 17.5 AWG | 22 AWG | |
JAE Electronics | Gold | Crimp | Pin | Stamped | 22 AWG | 24 AWG | |
JAE Electronics | Gold | Crimp | Pin | Stamped | 22 AWG | 26 AWG | |
JAE Electronics | Gold | Crimp | Pin | Stamped | 12 AWG | 14 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.53 | |
| 10 | $ 0.45 | |||
| 25 | $ 0.42 | |||
| 50 | $ 0.40 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.36 | |||
| 500 | $ 0.34 | |||
| Tape & Reel (TR) | 1500 | $ 0.25 | ||
| 3000 | $ 0.24 | |||
| 4500 | $ 0.24 | |||
Description
General part information
KN01P Series
Contact Crimp Pin 12-14 AWG Gold
